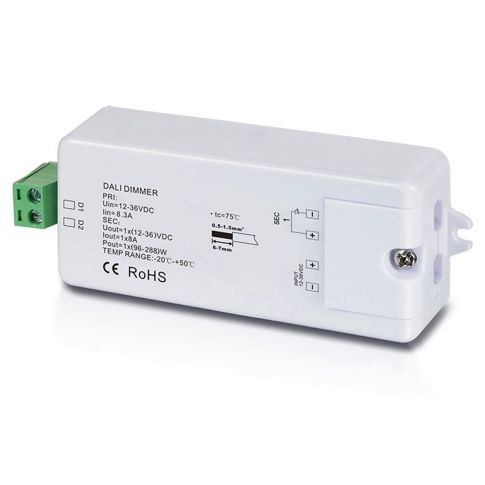

DALI 1 address PWM dimmer 12-36V, 1 channel, 12-36V 8A
In stock
Article number
113203
| Article number | 113203 |
|---|---|
| Product description | DALI 1 address PWM dimmer 12-36V, 1 channel, 12-36V 8A |
| GTIN - EAN | 9009377049811 |
| Features |     |
| EU-Konformitätserklaerung | |
| Special features | 1-channel light control unit with 12V-36V DC constant voltage at the output and DALI interface for single-color LED stripes or illuminants for control via DALI bus / protocol. Control is via the assigned DALI short address in accordance with DALI standard protocol IEC60929. Only install and connect when voltage-free! |
| Dimming Specifications | Dimming range 0-100% in 256 levels |
| Nominal voltage | 12 - 36 V DC |
| Rated power | 288 VA |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 140 |
| Length in mm | 100,0 |
| Width in mm | 37,0 |
| Height in mm | 20,0 |
| Guarantee in years | 2 |
| Net price | N |
| Bulky goods | N |
| Excess lengths | N |
| Width in mm | 37.00 mm |
