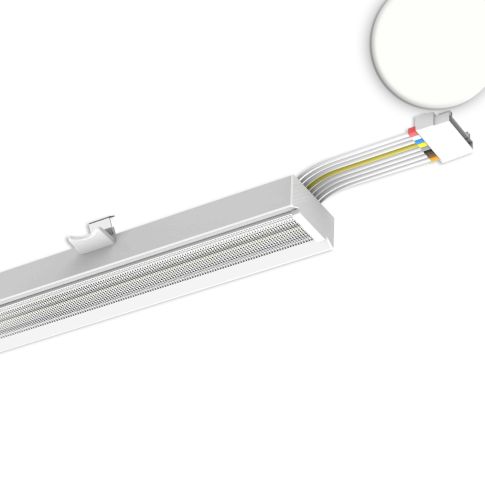

FastFix LED Linear System R PLUS module 1.47m, 25-75W, 4000K, 120°, 180lm/W, DALI dimmable
Article is located in the inlet, please contact the internal sales team
Article number
117952
| Article number | 117952 |
|---|---|
| Product description | FastFix LED Linear System R PLUS module 1.47m, 25-75W, 4000K, 120°, 180lm/W, DALI dimmable |
| GTIN - EAN | 9009377183393 |
| Features |           |
| Dimmable | Yes |
| Luminous flux in lumen | 13500 lm |
| Efficiency in lm/W | 180 |
| Beam angle | 120° |
| Special features | 8-pole: 5 × 2.5qmm + 3 × 1.5qmm |
| Dimming Specifications | Continuous power regulation via dip switches on the power supply located on the back of the unit, or variable regulation via a DALI/DALI-2 control signal; completely flickerfree at 100% light output |
| Color temperature | 4000K |
| CRI Ra | 80 |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 75 W |
| Active power | 75 W |
| Energy efficiency class | A |
| Protection class | IP20 |
| Width in mm | 65.00 mm |
| Weight in gramm | 1833 |
| Length in mm | 1470,0 |
| Width in mm | 65,0 |
| Height in mm | 31,0 |
| Pitch SMD (mm) | 0.00 |
| Housing material | steel |
| RGB light source | No |
| Guarantee in years | 5 |
| Dimming type | DALI |
| Lifetime L70|B10 | 58000 |
| Useful life L70|B50 | 58000 |
| Useful life L80|B50 in hours | 36000 |
| Housing color | white |
| ext. Transformer height | 0.00 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| Beam angle type | fixed |
| incl. illuminant | N |
| Quick installation | Y |
| Net price | Y |
| Bulky goods | Y |
| Excess lengths | N |
| Max. length per feed (m) | 0.00 m |
| Cooling mass g/m | 0.00 g/m |
| Separation point (mm) | 0.00 mm |
| Outdoor area | No |
