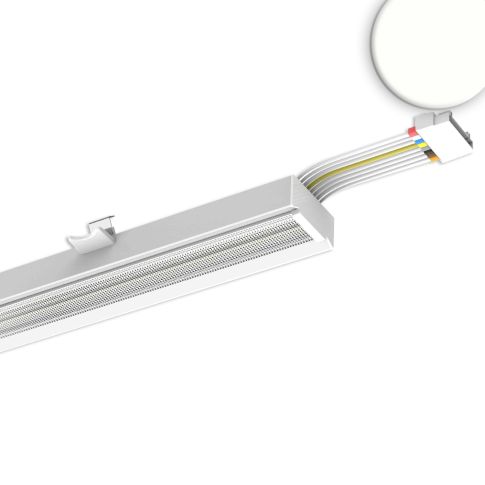

FastFix LED Linear System R PLUS module 1.47m, 55-75W, 4000K, 120°, 180lm/W
Article is located in the inlet, please contact the internal sales team
Article number
117951
| Article number | 117951 |
|---|---|
| Product description | FastFix LED Linear System R PLUS module 1.47m, 55-75W, 4000K, 120°, 180lm/W |
| GTIN - EAN | 9009377183386 |
| Features |          |
| Special features | 8-pole: 5 × 2.5qmm + 3 × 1.5qmm |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 75 W |
| Active power | 75 W |
| Efficiency in lm/W | 180 |
| Luminous flux in lumen | 13500 lm |
| Color temperature | 4000K |
| Permissible ambient temp. | -20°C - 45°C |
| max. ambient temperature in °C | 45 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 80 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | No |
| Dimming Specifications | Continuous power regulation via dip switches on the power supply located on the backside |
| Protection class | IP20 |
| Housing color | white |
| Housing material | steel |
| Weight in gramm | 1960 |
| Length in mm | 1470,0 |
| Width in mm | 65,0 |
| Height in mm | 31,0 |
| Lifetime L70|B10 | 58000 |
| Useful life L70|B50 | 58000 |
| Useful life L80|B50 in hours | 36000 |
| Guarantee in years | 5 |
| Net price | Y |
| Excess lengths | N |
| Bulky goods | Y |
| Width in mm | 65.00 mm |
