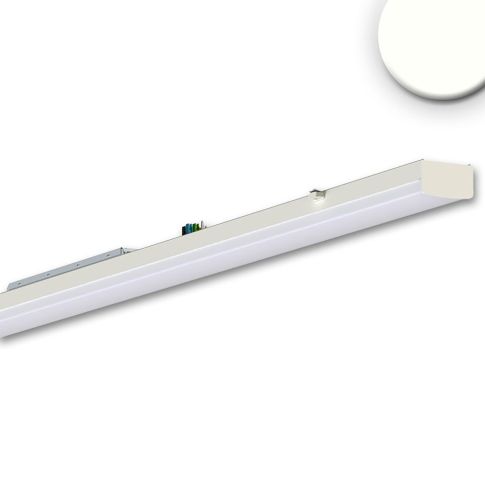

FastFix LED linear system S module 1,5m 28-73W, 4000K, 180lm/W, 120°, DALI dimmable
Article is located in the inlet, please contact the internal sales team
Article number
115245
| Article number | 115245 |
|---|---|
| Product description | FastFix LED linear system S module 1,5m 28-73W, 4000K, 180lm/W, 120°, DALI dimmable |
| GTIN - EAN | 9009377098260 |
| Features |          |
| Special features | 8 pole 2,5qmm (L1, L2, L3, N, PE, Dimm+, -, CHR) continuous opal cover, quick locking for mounting in beam receptacle item no. 113934/113942 |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 73 W |
| Active power | 72,9 W |
| Efficiency in lm/W | 185 |
| Luminous flux in lumen | 13500 lm |
| Color temperature | 4000K |
| Permissible ambient temp. | 0°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | 0 |
| CRI Ra | 83 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | DALI |
| Dimming Specifications | Permanent power regulation via jumper setting on the power supply unit included on the back or variable via DALI/DALI-2 control signal, absolutely flickerfree at 100% light output |
| Protection class | IP40 |
| Housing color | white |
| Housing material | Steel |
| Weight in gramm | 1950 |
| Length in mm | 1437,0 |
| Width in mm | 65,0 |
| Height in mm | 37,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 5 |
| Net price | Y |
| Excess lengths | N |
| Bulky goods | Y |
| Width in mm | 65.00 mm |
