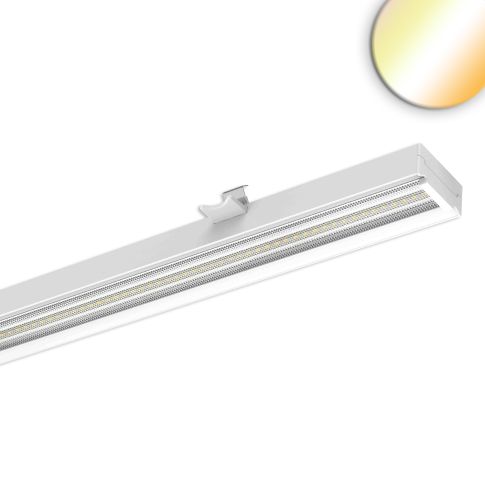

FastFix LED Linear System S PLUS module 1.47m, 25-75W, 3000|4000|5000K, 180lm/W, 120°, DALI dimmable
Article is located in the inlet, please contact the internal sales team
Article number
117937
| Article number | 117937 |
|---|---|
| Product description | FastFix LED Linear System S PLUS module 1.47m, 25-75W, 3000|4000|5000K, 180lm/W, 120°, DALI dimmable |
| GTIN - EAN | 9009377183249 |
| Features |           |
| Special features | 8-pole 2.5qmm (L1, L2, L3, N, PE, Dim+, -, CHR) with continuous opal Cover, quick lock for fixing in a bar mount |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 75 W |
| Active power | 75 W |
| Efficiency in lm/W | 180 |
| Luminous flux in lumen | 13500 lm |
| Color temperature | 3000 K 4000K 5000K |
| Permissible ambient temp. | -20°C - 45°C |
| max. ambient temperature in °C | 45 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 80 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | DALI |
| Dimming Specifications | Continuous power regulation via dip switches on the power supply located on the back of the unit, or variable regulation via a DALI/DALI-2 control signal; completely flickerfree at 100% light output |
| Protection class | IP20 |
| Housing color | white |
| Housing material | steel |
| Weight in gramm | 1950 |
| Length in mm | 1470,0 |
| Width in mm | 65,0 |
| Height in mm | 31,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 52000 |
| Useful life L80|B50 in hours | 33000 |
| Guarantee in years | 5 |
| Net price | Y |
| Excess lengths | N |
| Bulky goods | Y |
| Width in mm | 65.00 mm |
