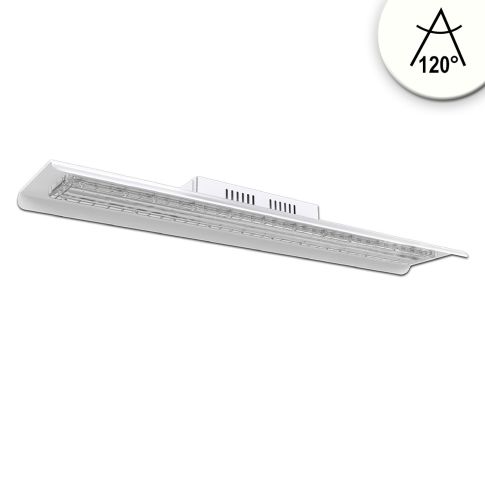

LED Highbay luminaire Linear SK 150W, 120°, IK10, IP65, 1-10V dimmable, neutral white
In stock
Article number
114206
| Article number | 114206 |
|---|---|
| Product description | LED Highbay luminaire Linear SK 150W, 120°, IK10, IP65, 1-10V dimmable, neutral white |
| GTIN - EAN | 9009377073960 |
| Features |           |
| Special features | A steel cable (120 cm) for suspension is supplied. An optional swivel mounting bracket is available separately under item no. 114350. |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 156 W |
| Active power | 150 W |
| Luminous flux in lumen | 22000 lm |
| Efficiency in lm/W | 146 |
| Permissible ambient temp. | -40°C - 45°C |
| max. ambient temperature in °C | 45 |
| min. ambient temperature in °C | -40 |
| Color temperature | 4000K |
| CRI Ra | 82 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | 1-10V |
| Dimming Specifications | Dimmable via 1-10V DC control signal or rotary potentiometer. The power supply must be disconnected to switch off the luminaire completely. (To wire the 1-10V, you need to break open a pre-perforation on the side) |
| Protection class | IP65 |
| Housing material | Aluminum |
| Enclosed accessories | 120 cm Stahlseil |
| Housing color | white |
| Weight in gramm | 4680 |
| Length in mm | 1160,0 |
| Width in mm | 171,0 |
| Height in mm | 65,0 |
| Lifetime L70|B10 | 60000 |
| Useful life L70|B50 | 90000 |
| Useful life L80|B50 in hours | 79000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | Y |
