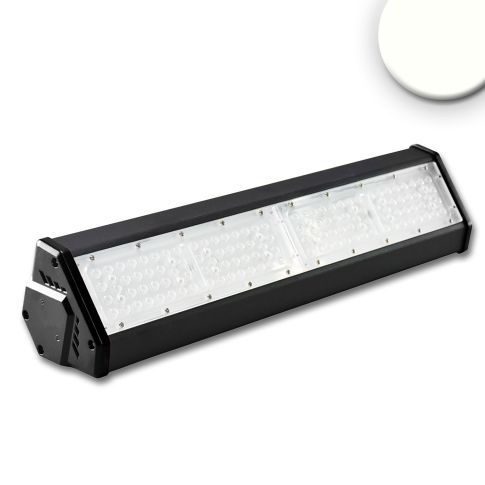

LED Highbay luminaire LN 100W, 30°x70°, IK10, IP65, 1-10V dimmable, neutral white
Article is located in the inlet, please contact the internal sales team
Article number
113410
| Article number | 113410 |
|---|---|
| Product description | LED Highbay luminaire LN 100W, 30°x70°, IK10, IP65, 1-10V dimmable, neutral white |
| GTIN - EAN | 9009377053863 |
| Features |        |
| Special features | two 90° mounting brackets are supplied for wall or ceiling mounting |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 100 W |
| Active power | 100 W |
| Luminous flux in lumen | 11700 lm |
| Efficiency in LM | 117 |
| Permissible ambient temp. | -20°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| Color temperature | 4000K |
| CRI Ra | 80 |
| Beam angle | 30° x 70° H+V |
| Beam angle type | H+V |
| Dimmable | Yes |
| Dimming type | 1-10V |
| LED Type | Philips 3030 |
| Housing material | Aluminum |
| Housing color | black |
| Weight in gramm | 4800 |
| Length in mm | 529,0 |
| Width in mm | 134,0 |
| Height in mm | 90,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
