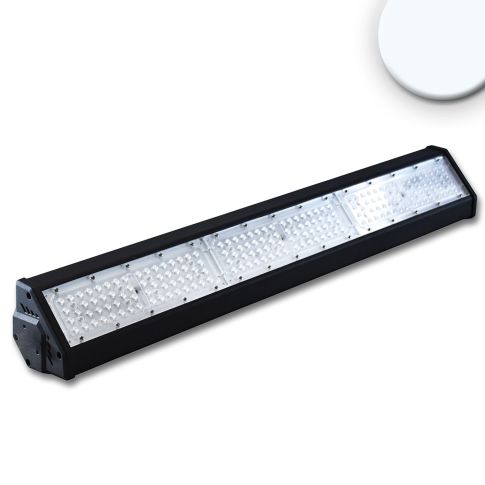

LED Highbay luminaire LN 150W, 60°, IP65, 1-10V dimmable, cold white
In stock
Article number
113384
| Article number | 113384 |
|---|---|
| Product description | LED Highbay luminaire LN 150W, 60°, IP65, 1-10V dimmable, cold white |
| GTIN - EAN | 9009377053474 |
| Features |        |
| Special features | two 90° mounting brackets are supplied for wall or ceiling mounting |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 150 W |
| Active power | 148 W |
| Luminous flux in lumen | 17000 lm |
| Efficiency in lm/W | 114 |
| Permissible ambient temp. | -20°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| Color temperature | 5700K |
| CRI Ra | 80 |
| Beam angle | 60° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | 1-10V |
| Dimming Specifications | Dimmable via 1-10V DC control voltage or rotary potentiometer (100kO) |
| LED Type | Philips 3030 |
| Protection class | IP65 |
| Housing material | Aluminum |
| Housing color | black |
| Weight in gramm | 6940 |
| Length in mm | 802,0 |
| Width in mm | 134,9 |
| Height in mm | 90,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
