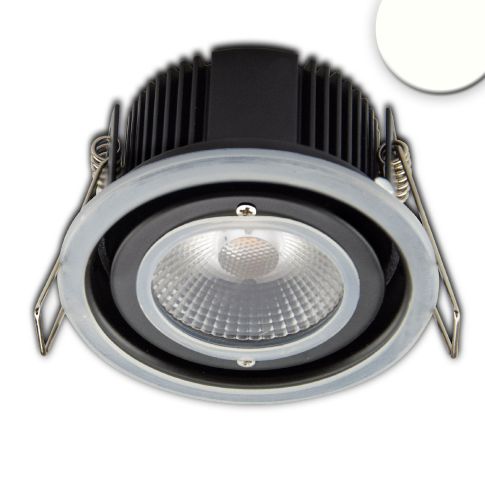

LED Recessed spotlight Sys-68, 10W, IP65, neutral white, push or Dali-dimmable (excl. cover)
Article is located in the inlet, please contact the internal sales team
Article number
114140
| Article number | 114140 |
|---|---|
| Product description | LED Recessed spotlight Sys-68, 10W, IP65, neutral white, push or Dali-dimmable (excl. cover) |
| GTIN - EAN | 9009377072789 |
| Features |          |
| Special features | The recessed spotlight is delivered without necessary cover. Different colored covers can be ordered: item no. 113058 to 113067. Incl. external constant current transformer (230mA 20-40V DC, w=39 h=22 l=113mm). |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 11 W |
| Permissible ambient temp. | -20°C - 40°C |
| min. ambient temperature in °C | -20 |
| max. ambient temperature in °C | 40 |
| Active power | 10 W |
| Luminous flux in lumen | 875 lm |
| Efficiency in lm/W | 87 |
| Color temperature | 4000K |
| CRI Ra | 95 |
| Beam angle | 60° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | DALI oder Push |
| Protection class | IP65 |
| Outdoor area | Yes |
| Housing material | Aluminum |
| Housing color | black |
| Weight in gramm | 302 |
| Height in mm | 48,0 |
| Diameter in mm | 83.00 mm |
| Hole cut-out | 68 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 42 |
| Protection class | 2 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
