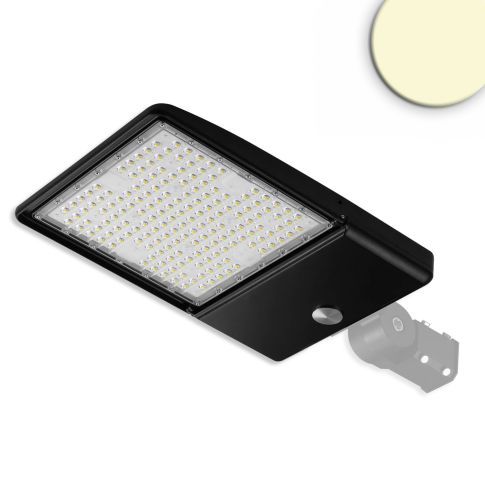

LED Street Light HE115, 3000K, 1-10V dimmable with daylight and motion control, angle type III
In stock
Article number
116415
| Article number | 116415 |
|---|---|
| Product description | LED Street Light HE115, 3000K, 1-10V dimmable with daylight and motion control, angle type III |
| GTIN - EAN | 9009377164972 |
| Features |          |
| Special features | Adapter 113767, 113768, 113769 or 113770 is also required for mounting on a mast or wall - remote control item no. 114600 is also required to set the functions (one remote control can be used for several luminaires/sensors) |
| Nominal voltage | 220 - 240 V AC |
| Dimmable | Yes |
| Dimming type | 1-10V |
| Dimming Specifications | Dimmable via 1-10V DC control voltage or rotary potentiometer (100kO) |
| Rated power | 115 W |
| Luminous flux in lumen | 19000 lm |
| Efficiency in lm/W | 165 |
| Color temperature | 3000K |
| CRI Ra | 72 |
| Permissible ambient temp. | -40°C - 50°C |
| max. ambient temperature in °C | 50 |
| min. ambient temperature in °C | -40 |
| Beam angle | 90° |
| Beam angle type | fixed |
| Protection class | IP65 |
| Housing material | Die-cast aluminum |
| Housing color | black |
| Weight in gramm | 3680 |
| Length in mm | 420,0 |
| Width in mm | 270,0 |
| Height in mm | 78,0 |
| Lifetime L70|B10 | 55000 |
| Useful life L70|B50 | 83000 |
| Useful life L80|B50 in hours | 72000 |
| Guarantee in years | 5 |
| Net price | Y |
| Excess lengths | N |
| Bulky goods | N |
