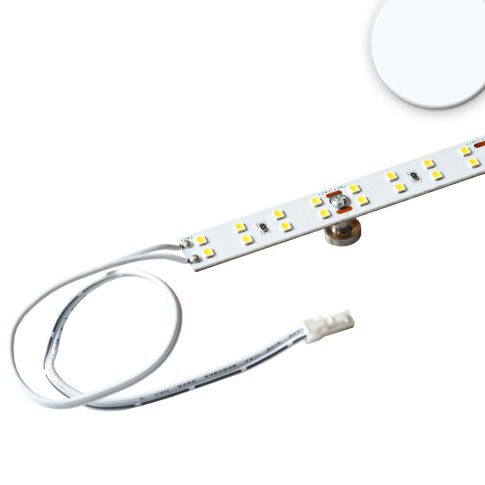

LED T5/T8 Retrofit circuit board 865, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, cold white, dim
In stock
Article number
116001
| Article number | 116001 |
|---|---|
| Product description | LED T5/T8 Retrofit circuit board 865, 115cm, MiniAMP, 184 LED, 24V, 19W, 170 lm/W, cold white, dim |
| GTIN - EAN | 9009377153600 |
| Features |       |
| Special features | Rigid circuit board incl. 3M VHB adhesive tape on the back and 3 holding magnets for fastening, 50mm separation point with drilled hole, 30cm connection cable with MiniAMP male plug on one side, wire cross-section 0,5mm² |
| Nominal voltage | 24 V DC |
| Rated power | 19 W |
| Active power | 18,9 W |
| Efficiency in lm/W | 172 |
| Luminous flux in lumen | 3250 lm |
| RGB light source | No |
| Color temperature | 6500K |
| Permissible ambient temp. | -10°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -10 |
| CRI Ra | 80 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP20 |
| Housing material | Copper |
| Enclosed accessories | 3 Magnete |
| Separation point (mm) | 50.00 mm |
| Pitch SMD (mm) | 12.00 |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M VHB |
| Weight in gramm | 100 |
| Width in mm | 15,0 |
| Length in mm | 1150,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 60000 |
| Useful life L70|B50 | 90000 |
| Useful life L80|B50 in hours | 79000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | Y |
