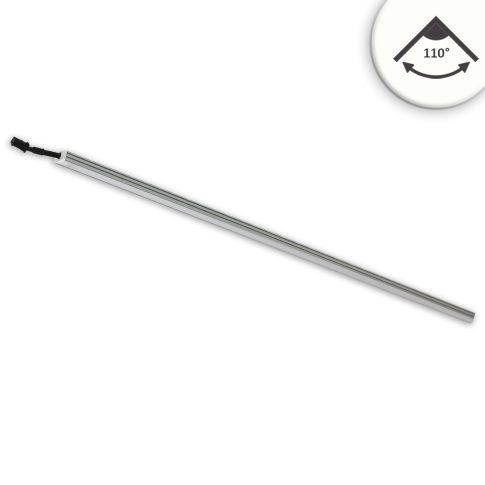

LED UP module for pendant lamp grid UGR<19, 110°, 8W, 4000K, DALI dimmable
In stock
Article number
117058
| Article number | 117058 |
|---|---|
| Product description | LED UP module for pendant lamp grid UGR<19, 110°, 8W, 4000K, DALI dimmable |
| GTIN - EAN | 9009377171352 |
| Features |       |
| Nominal voltage | 28 - 32 V DC |
| Active power | 8 W |
| Rated power | 8 W |
| Luminous flux in lumen | 980 lm |
| Efficiency in lm/W | 122 |
| Color temperature | 4000K |
| CRI Ra | 80 |
| Beam angle | 110° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | DALI |
| Protection class | IP42 |
| Housing color | black |
| Weight in gramm | 420 |
| Length in mm | 853,0 |
| Width in mm | 3,0 |
| Height in mm | 10,0 |
| max. ambient temperature in °C | 40 |
| Permissible ambient temp. | -20°C - 40°C |
| min. ambient temperature in °C | -20 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
