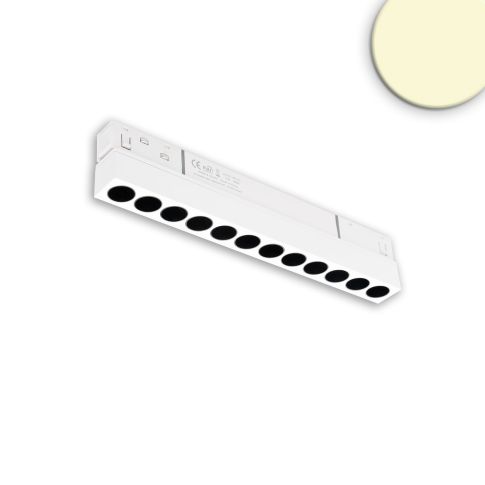

Track48 grid light 22cm white, 12W, 36°, UGR<19, 48V DC, 3000K, CRI90, DALI dimmable
In stock
Article number
116753
| Article number | 116753 |
|---|---|
| Product description | Track48 grid light 22cm white, 12W, 36°, UGR<19, 48V DC, 3000K, CRI90, DALI dimmable |
| GTIN - EAN | 9009377166655 |
| Features |        |
| Special features | Operation only on a non-dimmable 48V DC constant voltage source |
| Nominal voltage | 48 V DC |
| Rated power | 12 W |
| Active power | 12 W |
| Luminous flux in lumen | 880 lm |
| Efficiency in lm/W | 73 |
| Color temperature | 3000K |
| CRI Ra | 90 |
| Beam angle | 36° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | DALI |
| Protection class | IP20 |
| Housing material | Aluminum |
| Housing color | white |
| Weight in gramm | 182 |
| Length in mm | 220,0 |
| Width in mm | 22,0 |
| Height in mm | 43,0 |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -10 |
| Guarantee in years | 5 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Excess lengths | N |
| Net price | N |
| Bulky goods | N |
