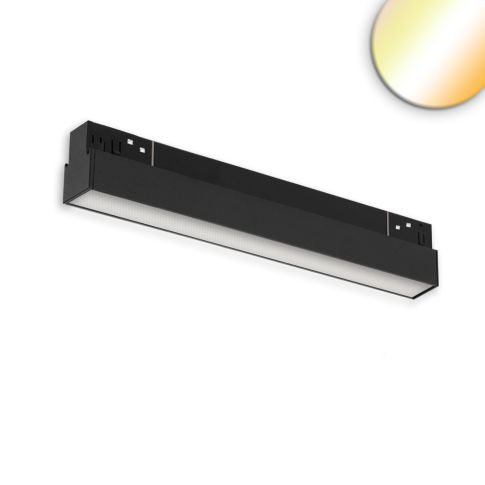

Track48 linear light 30cm black, 10W, 120°, 48V, 1800-4000K, CRI90, prismatic, Line+, DALI DT8
In stock
Article number
117226
| Article number | 117226 |
|---|---|
| Product description | Track48 linear light 30cm black, 10W, 120°, 48V, 1800-4000K, CRI90, prismatic, Line+, DALI DT8 |
| GTIN - EAN | 9009377173745 |
| Features |        |
| Special features | Operation only on a non-dimmable 48V DC constant voltage source, Line+ through-wiring max. 6A, 48V / Line+ refers to through-wiring with contacts at both ends (this allows the voltage to be transmitted between two rails without a connector) |
| Nominal voltage | 48 V DC |
| Rated power | 10 W |
| Active power | 10 W |
| Luminous flux in lumen | 560 lm |
| Efficiency in lm/W | 56 |
| Color temperature | 1800K - 4000K |
| CRI Ra | 90 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | DALI |
| Protection class | IP20 |
| Housing material | Aluminum |
| Housing color | black |
| Weight in gramm | 187 |
| Length in mm | 304,0 |
| Width in mm | 22,0 |
| Height in mm | 43,0 |
| Permissible ambient temp. | -10°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -10 |
| Guarantee in years | 5 |
| Lifetime L70|B10 | 50000 |
| Useful life L70|B50 | 75000 |
| Useful life L80|B50 in hours | 66000 |
| Excess lengths | N |
| Net price | N |
| Bulky goods | N |
