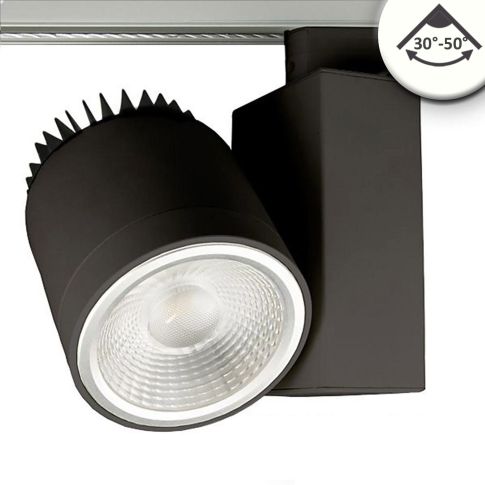

3-PH Track light focusable, 30W, 30°-50°, black matt, 4000K, dimmable
In stock
Article number
113969
| Article number | 113969 |
|---|---|
| Product description | 3-PH Track light focusable, 30W, 30°-50°, black matt, 4000K, dimmable |
| GTIN - EAN | 9009377067433 |
| Features |       |
| Special features | incl. 3-phase EURO adapter, passively cooled, incl. variable adjustment of the beam angle from 30° to 50°, dimensions lamp head: 106x135mm, |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 30 W |
| Active power | 27,3 W |
| Luminous flux in lumen | 3000 lm |
| Efficiency in lm/W | 109 |
| Color temperature | 4000K |
| CRI Ra | 92 |
| Beam angle | 30° - 50° Min-Max |
| Beam angle type | Min-Max |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Dimming Specifications | Dimming range: 20-100% of the light output with TRIAC dimmer | Recommendation: use trailing edge dimmer | Flicker rate depends on the dimmer used and the type of dimming | Flickerfree in undimmed state |
| Protection class | IP20 |
| Housing material | Cast aluminum |
| Housing color | black matt |
| Weight in gramm | 1420 |
| Length in mm | 204,0 |
| Width in mm | 150,0 |
| Permissible ambient temp. | -20°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| Guarantee in years | 5 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Excess lengths | N |
| Net price | N |
| Bulky goods | N |
