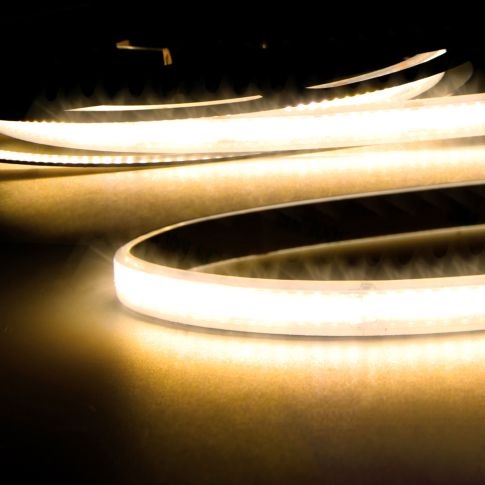

LED AQUA CRI930 Linear 48V flex stripe, 13W, IP68, 3000K, 20m roll, 240 LED/m
In stock
Article number
114243
| Article number | 114243 |
|---|---|
| Product description | LED AQUA CRI930 Linear 48V flex stripe, 13W, IP68, 3000K, 20m roll, 240 LED/m |
| GTIN - EAN | 9009377074660 |
| Features |        |
| Special features | Separation point: 50mm with 12 SMD each | Pitch (light point center-center): 4,17mm | 1 unit (roll) = 20m | max. flex stripe length per infeed: 20m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable on both sides |
| Nominal voltage | 48 V DC |
| Rated power | 13 W/m |
| Active power | 13 W/m |
| Efficiency in lm/W | 84 |
| Luminous flux in lumen | 1100 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| Permissible ambient temp. | -20°C - 45°C |
| max. ambient temperature in °C | 45 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 95 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP68 |
| Housing material | Silicone |
| Potting material | Silikon |
| LED chips per metre | 240.000000 |
| LED per roll | 4.800,00 |
| Properties of connection cable | Anschlusskabel beidseitig |
| Enclosed accessories | 4 Endkappen | 40 Montagebügel | Kleber |
| Separation point (mm) | 50.00 mm |
| LED per disconnection point | 12.000000 |
| Pitch SMD (mm) | 4.17 |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 20.00 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 1310 |
| Width in mm | 12,0 |
| Length in mm | 20000,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 12.00 mm |
