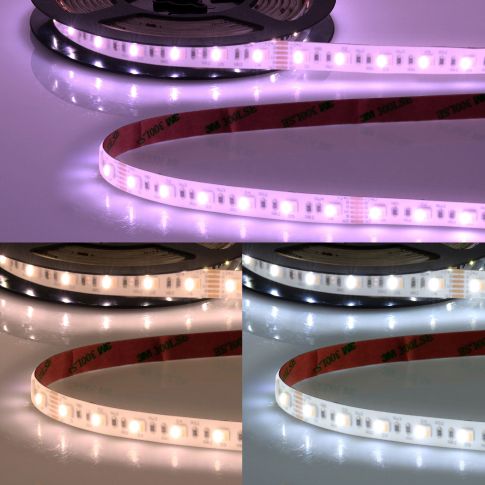

LED AQUA RGB+WW+CW CCT flex stripe, 24V DC, 22W, IP68, 5in1 chip, 5m roll, 60 LED/m
In stock
Article number
114685
| Article number | 114685 |
|---|---|
| Product description | LED AQUA RGB+WW+CW CCT flex stripe, 24V DC, 22W, IP68, 5in1 chip, 5m roll, 60 LED/m |
| GTIN - EAN | 9009377085550 |
| Features |        |
| Special features | Separation point: 100mm with 6 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 24 V DC |
| Rated power | 22 W/m |
| Active power | 22 W/m |
| Efficiency in lm/W | 61 |
| Luminous flux in lumen | 1350 lm/m |
| RGB light source | Yes |
| Color temperature | 2500K - 6500K |
| Permissible ambient temp. | -20°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 83 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | 50% 2500K + 50% 6500K = 3900K, 420lm 4,7W | 100% RGB + 100% 2500K + 100% 6500K = 7400K, 1350lm 22W |
| Protection class | IP68 |
| Housing material | Silicone |
| Potting material | Silikon |
| LED chips per metre | 60,00 |
| LED per roll | 300,00 |
| Properties of connection cable | Anschlusskabel beidseitig |
| Enclosed accessories | 4 Endkappen | 20 Montagebügel |
| LED per disconnection point | 6.000000 |
| Pitch SMD (mm) | 16.67 |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M VHB |
| Weight in gramm | 200 |
| Width in mm | 14,5 |
| Length in mm | 5000,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 14.50 mm |
