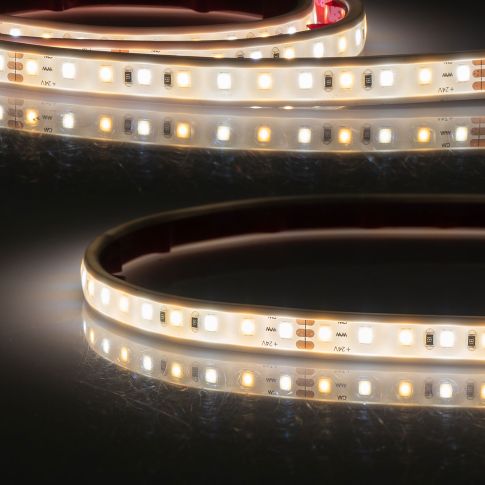

LED AQUA927/960 PU Linear CCT flex stripe, 24V DC, 7W ww + 7 W kw, IP68, 5m roll, 120 LED/m
In stock
Article number
115684
| Article number | 115684 |
|---|---|
| Product description | LED AQUA927/960 PU Linear CCT flex stripe, 24V DC, 7W ww + 7 W kw, IP68, 5m roll, 120 LED/m |
| GTIN - EAN | 9009377146077 |
| Features |        |
| Special features | Separation point: 100mm with 12 SMD each | Pitch (light point center-center): 16,66mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | polyurethane encapsulation | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 24 V DC |
| Rated power | 14 W/m |
| Active power | 14 W/m |
| Efficiency in lm/W | 89 |
| Luminous flux in lumen | 1250 lm/m |
| RGB light source | No |
| Color temperature | 2700K - 6000K |
| Permissible ambient temp. | -20°C - 45°C |
| max. ambient temperature in °C | 45 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 90 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | When operated with a white dynamic controller, power consumption is 7 W/m, 625 lm/m |
| Protection class | IP68 |
| Housing material | Polyurethane |
| Potting material | Polyurethan |
| LED chips per metre | 120.000000 |
| LED per roll | 600,00 |
| Properties of connection cable | Anschlusskabel beidseitig |
| Matching connectors | O1-212 |
| Enclosed accessories | 2 Endkappen mit Kabeldurchführung | 2 Endkappen | 15 Silikon-Montagebügel |30 Schrauben |
| Separation point (mm) | 100.00 mm |
| LED per disconnection point | 12.000000 |
| Pitch SMD (mm) | 16.66 |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M VHB |
| Weight in gramm | 366 |
| Width in mm | 10,2 |
| Length in mm | 5000,0 |
| Height in mm | 5,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
