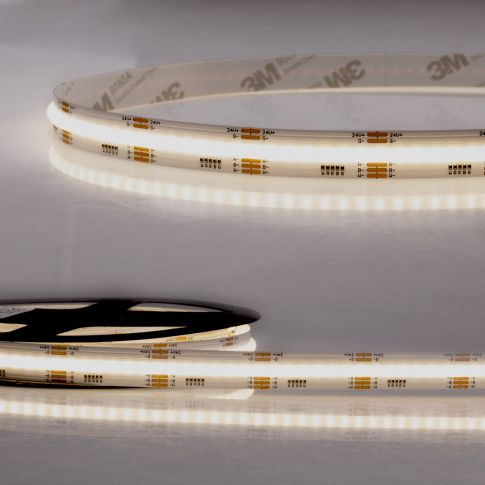

LED COB RGB+3000K Linear flex stripe, 24V DC, 20W, IP20, 5m roll, 896 LED/m
In stock
Article number
115790
| Article number | 115790 |
|---|---|
| Product description | LED COB RGB+3000K Linear flex stripe, 24V DC, 20W, IP20, 5m roll, 896 LED/m |
| GTIN - EAN | 9009377148101 |
| Features |       |
| Special features | Separation point: 62,5mm with 56 SMD each | Pitch (light point center-center): 1,12mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 140 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-512 | Special feature: connection cable one-sided |
| Nominal voltage | 24 V DC |
| Rated power | 20 W/m |
| Active power | 20 W/m |
| Efficiency in lm/W | 62 |
| Luminous flux in lumen | 1250 lm/m |
| RGB light source | Yes |
| Color temperature | 3000K |
| Permissible ambient temp. | 0°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | 0 |
| CRI Ra | 90 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP20 |
| LED chips per metre | 896.000000 |
| LED per roll | 4.480,00 |
| Properties of connection cable | Anschlusskabel einseitig |
| Matching connectors | K2-512 |
| Separation point (mm) | 62.50 mm |
| LED per disconnection point | 56.000000 |
| Pitch SMD (mm) | 1.12 |
| Cooling mass g/m | 140.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 220 |
| Width in mm | 12,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 12.00 mm |
