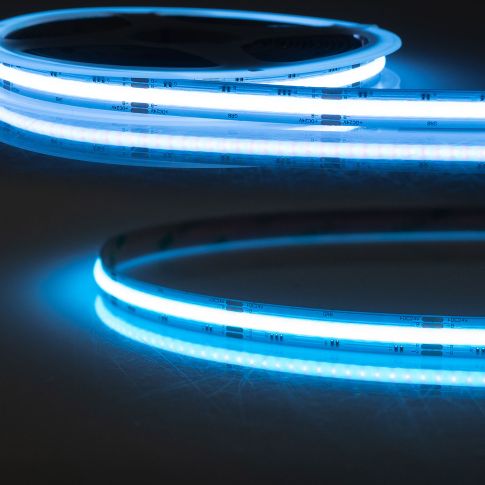

LED COB RGB Linear flex stripe, 24V DC, 14,4W, IP20, 5m roll, 840 LED/m
In stock
Article number
115788
| Article number | 115788 |
|---|---|
| Product description | LED COB RGB Linear flex stripe, 24V DC, 14,4W, IP20, 5m roll, 840 LED/m |
| GTIN - EAN | 9009377148064 |
| Features |      |
| Special features | Separation point: 50mm with 42 SMD each | Pitch (light point center-center): 1,19mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-410 | Special feature: connection cable one-sided |
| Nominal voltage | 24 V DC |
| Rated power | 14,4 W/m |
| Active power | 14 W/m |
| Efficiency in lm/W | 0 |
| RGB light source | Yes |
| Permissible ambient temp. | 0°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | 0 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP20 |
| LED chips per metre | 840.000000 |
| LED per roll | 4.200,00 |
| Properties of connection cable | Anschlusskabel einseitig |
| Matching connectors | K2-410 |
| Separation point (mm) | 50.00 mm |
| LED per disconnection point | 42.000000 |
| Pitch SMD (mm) | 1.19 |
| Cooling mass g/m | 75.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 220 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 10.00 mm |
