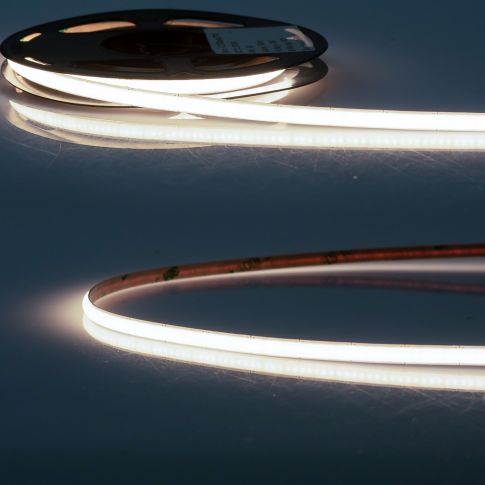

LED COB940 MICRO Linear flex stripe, 24V DC, 7W, IP20, 4000K, 5m roll, 504 LED/m

Name: LED COB940 MICRO Linear flex stripe, 24V DC, 7W, IP20, 4000K, 5m roll, 504 LED/m
SKU: 115784
Availability: InStock

Article is located in the inlet, please contact the internal sales team

Article number

115784

More Information
Article number	115784
Product description	LED COB940 MICRO Linear flex stripe, 24V DC, 7W, IP20, 4000K, 5m roll, 504 LED/m
GTIN - EAN	9009377147982
Features
Special features	Separation point: 13,89mm with 7 SMD each \| Pitch (light point center-center): 1,98mm \| 1 unit (roll) = 5m \| max. flex stripe length per infeed: 5m \| length tolerance + thermal expansion: 1% \| required cooling mass min. 45 gr/m \| incl. 3M 300LSE adhesive tape \| Clean and degrease surface before application! Do not remove again! \| The connectors of the group fit: K2-25 \| Special feature: connection cable one-sided
Nominal voltage	24 V DC
Rated power	7 W/m
Active power	7 W/m
Efficiency in lm/W	92
Luminous flux in lumen	650 lm/m
RGB light source	No
Color temperature	4000K
Permissible ambient temp.	0°C - 40°C
max. ambient temperature in °C	40
min. ambient temperature in °C	0
CRI Ra	90
Beam angle	120°
Dimmable	Yes
Dimming type	PWM
Protection class	IP20
LED chips per metre	504.000000
LED per roll	2.520,00
Properties of connection cable	Anschlusskabel einseitig
Matching connectors	K2-25
Separation point (mm)	13.89 mm
LED per disconnection point	7.000000
Pitch SMD (mm)	1.98
Cooling mass g/m	45.00 g/m
Max. length per feed (m)	5.00 m
Tape type	3M 300LSE
Weight in gramm	170
Width in mm	5,0
Length in mm	5000,0
Height in mm	2,0
Lifetime L70\|B10	38000
Useful life L70\|B50	57000
Useful life L80\|B50 in hours	50000
Guarantee in years	3
Net price	N
Excess lengths	N
Bulky goods	N
Width in mm	5.00 mm
