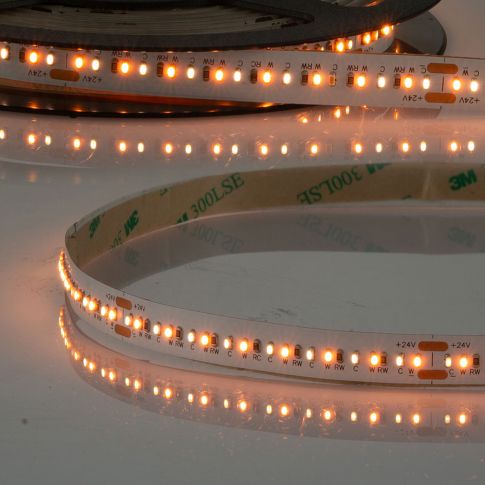

LED CRI90 SUNSET dim-to-warm (voltage sink) flex strip, 24V DC, 20W, IP20, 1800-2700K, 224 LED/m
Article is located in the inlet, please contact the internal sales team
Article number
114253
| Article number | 114253 |
|---|---|
| Product description | LED CRI90 SUNSET dim-to-warm (voltage sink) flex strip, 24V DC, 20W, IP20, 1800-2700K, 224 LED/m |
| GTIN - EAN | 9009377074875 |
| Features |     |
| Special features | Separation point: 71,43mm with 16 SMD each | Pitch (light point center-center): 4,46mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 3m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 20 W/m |
| Active power | 20 W/m |
| Efficiency in lm/W | 55 |
| Luminous flux in lumen | 1100 lm/m |
| RGB light source | No |
| Color temperature | 1800K - 2700K |
| Permissible ambient temp. | 0°C - 45°C |
| max. ambient temperature in °C | 45 |
| min. ambient temperature in °C | 0 |
| CRI Ra | 95 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | Spannungssenke |
| Dimming Specifications | ATTENTION: Dimmable only via voltage sink (e.g. via an upstream dimmable DC transformer) and NOT dimmable via pulse width modulated power supply (e.g. via a sequencer or dimmer placed between the transformer and flex stripe)! Suitable transformers: Item no. 112426, 112481, 113927, 113929 |
| Protection class | IP20 |
| LED chips per metre | 224,000000 |
| LED per roll | 1.120,00 |
| Properties of connection cable | Anschlusskabel beidseitig |
| Matching connectors | K2-210 |
| Separation point (mm) | 71.43 mm |
| LED per disconnection point | 16,000000 |
| Pitch SMD (mm) | 4.46 |
| Cooling mass g/m | 75.00 g/m |
| Max. length per feed (m) | 3.00 m |
| Tape type | 3M VHB |
| Weight in gramm | 115 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 10.00 mm |
