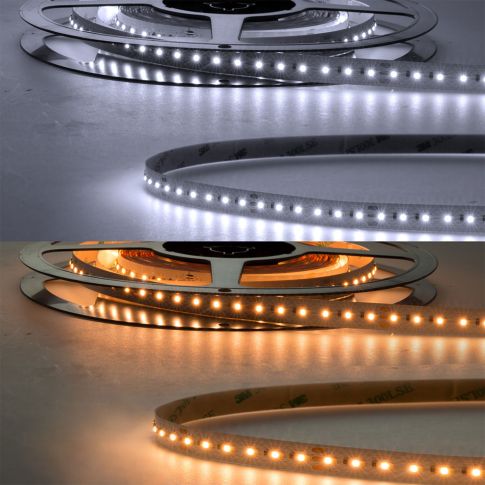

LED CRI923/950 Linear10 CCT flex stripe, 24V DC, 10W ww + 10W kw, IP20, 5m roll, 240 LED/m
In stock
Article number
113553
| Article number | 113553 |
|---|---|
| Product description | LED CRI923/950 Linear10 CCT flex stripe, 24V DC, 10W ww + 10W kw, IP20, 5m roll, 240 LED/m |
| GTIN - EAN | 9009377057076 |
| Features |      |
| Special features | Separation point: 50mm with 12 SMD each | Pitch (light point center-center): 8,34mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: C2-310 / K2-310-V1 | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 20 W/m |
| Active power | 19 W/m |
| Luminous flux in lumen | 1650 lm/m |
| Required cooling mass g/m | 75 |
| RGB light source | No |
| Color temperature | 2300K - 5000K |
| CRI Ra | 90 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Pitch SMD (mm) | 8.34 |
| Separation point (mm) | 50.000000 |
| Max. length per feed (m) | 5.00 |
| Tape type | 3M 300LSE |
| Protection class | IP20 |
| Permissible ambient temp. | 0°C - 45°C |
| Weight in gramm | 96 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
