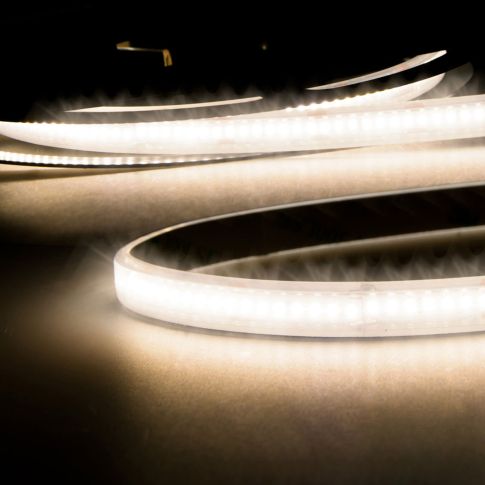

LED CRI930 Linear11 flex stripe, 24V DC, 15W, IP54, 3000K, 5m roll, 280 LED/m
In stock
Article number
113159
| Article number | 113159 |
|---|---|
| Product description | LED CRI930 Linear11 flex stripe, 24V DC, 15W, IP54, 3000K, 5m roll, 280 LED/m |
| GTIN - EAN | 9009377048944 |
| Features |        |
| Special features | Separation point: 25mm with 7 SMD each | Pitch (light point center-center): 3,57mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | silicone encapsulation | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 15 W/m |
| Active power | 15 W/m |
| Efficiency in lm/W | 106 |
| Luminous flux in lumen | 1600 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| Permissible ambient temp. | -20°C - 45°C |
| max. ambient temperature in °C | 45 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 92 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP54 |
| Housing material | Silicone |
| Potting material | Silikon |
| LED chips per metre | 280.000000 |
| LED per roll | 1.400,00 |
| Properties of connection cable | Anschlusskabel beidseitig |
| Enclosed accessories | 4 Endkappen | 20 Montagebügel | Kleber |
| Separation point (mm) | 25.00 mm |
| LED per disconnection point | 7.000000 |
| Pitch SMD (mm) | 3.57 |
| Cooling mass g/m | 75.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 252 |
| Width in mm | 11,0 |
| Length in mm | 5000,0 |
| Height in mm | 5,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 11.00 mm |
