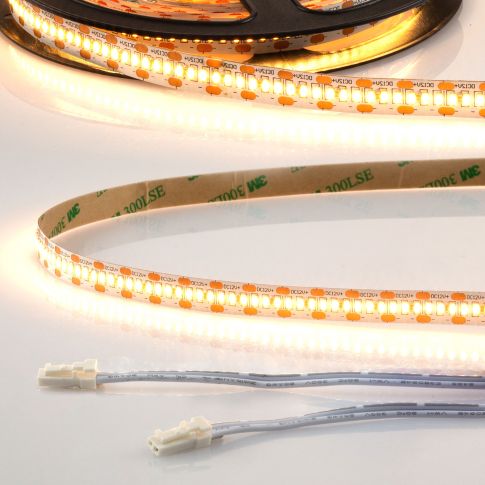

LED CRI930 MiniAMP flex stripe 12V DC 12W IP20 3000K 120cm, 30cm cable both sides+maleAMP 300 LED/m
In stock
Article number
114510
Article number | 114510 |
---|---|
Product description | LED CRI930 MiniAMP flex stripe 12V DC 12W IP20 3000K 120cm, 30cm cable both sides+maleAMP 300 LED/m |
GTIN - EAN | 9009377080753 |
Features | |
Special features | Separation point: 10mm with 3 SMD each | Pitch (light point center-center): 3,33mm | 1 unit (roll) = 1,2m | max. flex stripe length per infeed: 2,5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable on both sides |
Nominal voltage | 12 V DC |
Rated power | 12 W/m |
Active power | 12 W/m |
Luminous flux in lumen | 1100 lm/m |
RGB light source | No |
Color temperature | 3000K |
CRI Ra | 92 |
Beam angle | 120° |
Dimmable | Yes |
Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
Pitch SMD (mm) | 3.33 |
Max. length per feed (m) | 2.50 |
Required cooling mass | 75 |
Tape type | 3M VHB |
Protection class | IP20 |
Permissible ambient temp. | 0°C - 40°C |
Weight in gramm | 26 |
Width in mm | 10,0 |
Length in mm | 1200,0 |
Height in mm | 1,0 |
Lifetime L70|B10 | 52000 |
Useful life L70|B50 | 78000 |
Useful life L80|B50 in hours | 68000 |
Guarantee in years | 2 |
