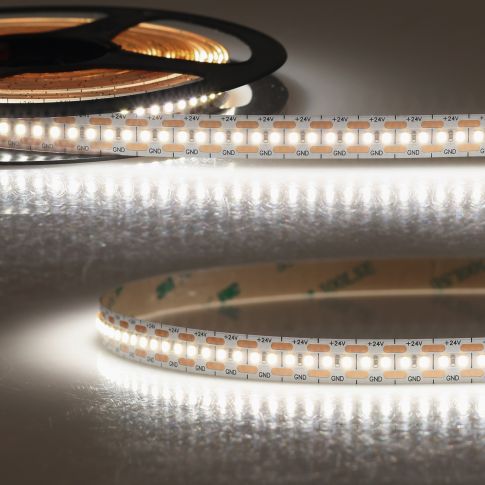

LED CRI942 Linear10 flex stripe, 24V DC, 22W, IP20, 4200K, 20m roll, 300 LED/m
In stock
Article number
112939
| Article number | 112939 |
|---|---|
| Product description | LED CRI942 Linear10 flex stripe, 24V DC, 22W, IP20, 4200K, 20m roll, 300 LED/m |
| GTIN - EAN | 9009377043383 |
| Features |      |
| Special features | Separation point: 20mm with 6 SMD each | Pitch (light point center-center): 3,33mm | 1 unit (roll) = 20m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 140 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 22 W/m |
| Active power | 22 W/m |
| Luminous flux in lumen | 2050 lm/m |
| RGB light source | No |
| Color temperature | 4200K |
| CRI Ra | 91 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Permissible ambient temp. | 0°C - 45°C |
| Pitch SMD (mm) | 3.33 |
| LED/disconnection point | 6.000000 |
| Max. length per feed (m) | 5.00 m |
| Cooling mass g/m | 140.00 g/m |
| Tape type | 3M 300LSE |
| LED chips per metre | 300.000000 |
| LED/roll | 6.000,00 |
| Separation point (mm) | 20.000000 |
| Width in mm | 10,0 |
| Length in mm | 20000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
