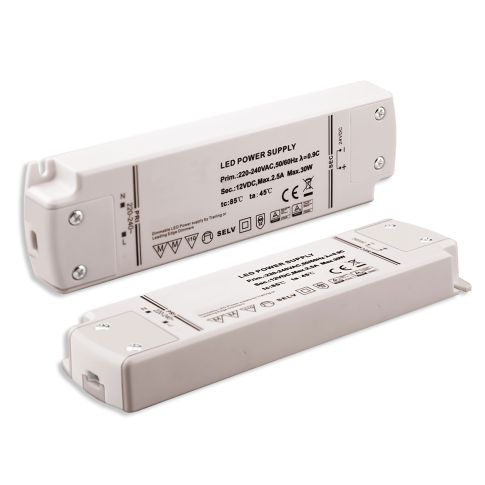

LED Flex stripe transformer 12V/DC, 0-30W, dimmable (voltage sink), SELV
In stock
Article number
113926
| Article number | 113926 |
|---|---|
| Product description | LED Flex stripe transformer 12V/DC, 0-30W, dimmable (voltage sink), SELV |
| GTIN - EAN | 9009377066870 |
| Features |            |
| Special features | Attention: Only suitable for the operation of 12V DC flex stripes - not for the operation of 12V AC/DC suitable illuminants! |
| Rated power | 30 W |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Dimming Specifications | Dimmable via TRIAC dimmer | Recommendation: only suitable for dimming on the primary side via leading or trailing edge phase |
| Nominal voltage | 220 - 240 V AC |
| Protection class | IP20 |
| Permissible ambient temp. | -20°C - 45°C |
| Housing material | Plastic |
| Weight in gramm | 140 |
| Length in mm | 157,0 |
| Width in mm | 46,0 |
| Height in mm | 18,5 |
| Protection class | 2 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 46.00 mm |
