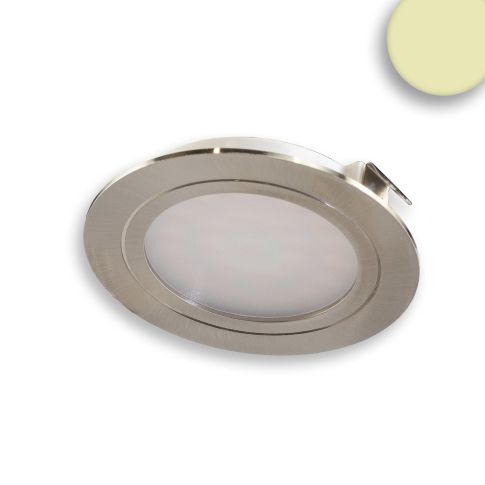

LED furniture spotlight recessed MiniAMP silver, 2W, 24V DC warm white 3000K, dimmable
In stock
Article number
114468
| Article number | 114468 |
|---|---|
| Product description | LED furniture spotlight recessed MiniAMP silver, 2W, 24V DC warm white 3000K, dimmable |
| GTIN - EAN | 9009377079696 |
| Features |       |
| Special features | Wire cross-section 0,5mm² |
| Properties of connection cable | 100 cm mit MiniAMP Stecker (2-polig, 0,5 mm²) |
| Nominal voltage | 24 V DC |
| Rated power | 2 W |
| Permissible ambient temp. | -20°C - 40°C |
| min. ambient temperature in °C | -20 |
| max. ambient temperature in °C | 40 |
| Active power | 1,75 W |
| Luminous flux in lumen | 140 lm |
| Efficiency in lm/W | 80 |
| Color temperature | 3000K |
| CRI Ra | 84 |
| Beam angle | 100° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP40 |
| Outdoor area | No |
| Housing material | Aluminum |
| Housing color | silver/gray |
| Weight in gramm | 36 |
| Height in mm | 15,0 |
| Diameter in mm | 65.00 mm |
| Hole cut-out | 58 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 14 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 20000 |
| Useful life L70|B50 | 30000 |
| Useful life L80|B50 in hours | 26000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
