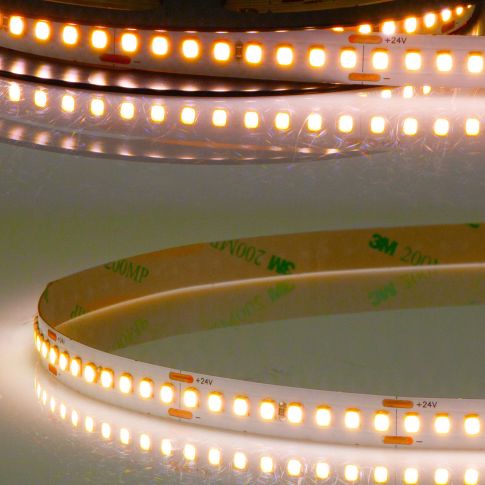

LED HEQ927 flex stripe High Bright, 24V DC, 12W, IP20, 2700K, 140 lm/W, 5m roll, 160 LED/m
In stock
Article number
114914
| Article number | 114914 |
|---|---|
| Product description | LED HEQ927 flex stripe High Bright, 24V DC, 12W, IP20, 2700K, 140 lm/W, 5m roll, 160 LED/m |
| GTIN - EAN | 9009377093081 |
| Features |     |
| Special features | Separation point: 50mm with 8 SMD each | Pitch (light point center-center): 6,25mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 12 W/m |
| Active power | 12 W/m |
| Luminous flux in lumen | 1500 lm/m |
| RGB light source | No |
| Color temperature | 2700K |
| CRI Ra | 93 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming Specifications | dimmable by PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Pitch SMD (mm) | 6.25 |
| Max. length per feed (m) | 5.00 |
| Required cooling mass | 75 |
| Tape type | 3M 300LSE |
| Protection class | IP20 |
| Permissible ambient temp. | 0°C - 40°C |
| Weight in gramm | 115 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
