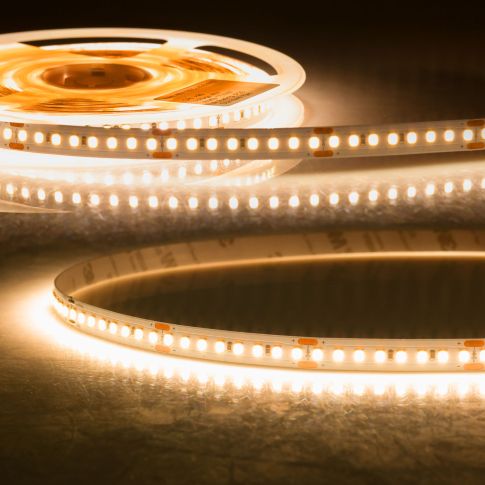

LED HEQ927 flex stripe High Bright, 48V DC, 17W, IP20, 2700K, 140lm/W, 160 LED/m, 10m roll
In stock
Article number
116138
| Article number | 116138 |
|---|---|
| Product description | LED HEQ927 flex stripe High Bright, 48V DC, 17W, IP20, 2700K, 140lm/W, 160 LED/m, 10m roll |
| GTIN - EAN | 9009377158131 |
| Features |       |
| Special features | Separation point: 50mm with 8 SMD each | Pitch (light point center-center): 6,25mm | 1 unit (roll) = 10m | max. flex stripe length per infeed: 10m | length tolerance + thermal expansion: 1% | required cooling mass min. 140 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 / K3-210 Multi | Special feature: connection cable on both sides |
| Nominal voltage | 48 V DC |
| Rated power | 17 W/m |
| Active power | 17 W/m |
| Efficiency in lm/W | 138 |
| Luminous flux in lumen | 2350 lm/m |
| RGB light source | No |
| Color temperature | 2700K |
| Permissible ambient temp. | 0°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | 0 |
| CRI Ra | 90 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP20 |
| LED chips per metre | 160,000000 |
| LED per roll | 800,00 |
| Properties of connection cable | Anschlusskabel beidseitig |
| Matching connectors | K2-210 / K3-210 Multi |
| Separation point (mm) | 50.00 mm |
| LED per disconnection point | 8,000000 |
| Pitch SMD (mm) | 6.25 |
| Cooling mass g/m | 140.00 g/m |
| Max. length per feed (m) | 10.00 m |
| Tape type | 3M 300LSE |
| Weight in gramm | 100 |
| Width in mm | 10,0 |
| Length in mm | 10000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 10.00 mm |
