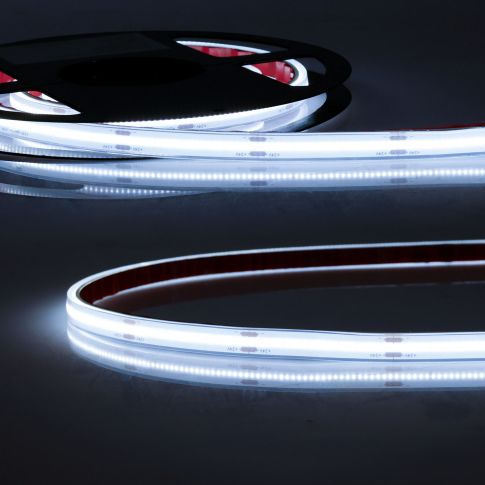

LED HT927/965 COB CCT 2 pole flex stripe for up to 100°C ambient, 24V DC, 8W, IP68, 5m, 512 LED/m
In stock
Article number
116134
| Article number | 116134 |
|---|---|
| Product description | LED HT927/965 COB CCT 2 pole flex stripe for up to 100°C ambient, 24V DC, 8W, IP68, 5m, 512 LED/m |
| GTIN - EAN | 9009377158209 |
| Features |        |
| Special features | Separation point: 62,5mm with 32 SMD each | Pitch (light point center-center): 3,9mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | Clean and degrease substrate before sticking! Do not peel off again! | silicone encapsulation | SPECIAL FEATURE: connection cable on both sides | enclosed accessories: end caps, mounting bracket |
| Nominal voltage | 24 V DC |
| Rated power | 8 W/m |
| Active power | 8 W/m |
| Efficiency in lm/W | 85 |
| Luminous flux in lumen | 680 lm/m |
| RGB light source | No |
| Color temperature | 2700K - 6500K |
| Permissible ambient temp. | -20°C - 100°C |
| max. ambient temperature in °C | 100 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 90 |
| Beam angle | 110° |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | 100% 2700K = 660lm | 100% 6500K = 690lm | 50% 2700K + 50% 6500K = 3750K, 680lm (7W) |
| Protection class | IP68 |
| Housing material | Silicone |
| Potting material | Silikon |
| LED chips per metre | 512,00 |
| LED per roll | 2.560,00 |
| Properties of connection cable | Anschlusskabel beidseitig |
| Enclosed accessories | 2 Endkappen, 2 Anschlusskappen, 20 Montagebügel |
| LED per disconnection point | 32.000000 |
| Pitch SMD (mm) | 3.90 |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M VHB |
| Weight in gramm | 175 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 10.00 mm |
