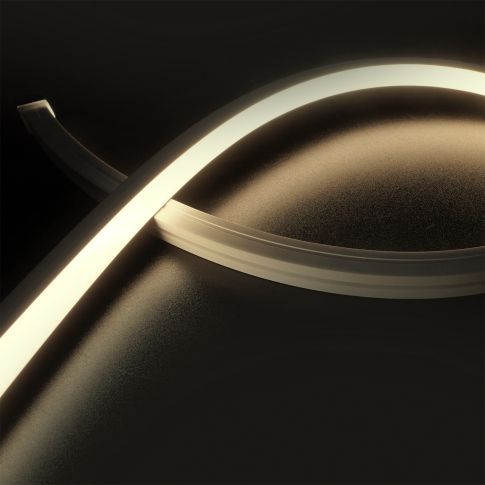

LED NeonPRO940 Custom flex stripe B13H13, 24V DC, 12W, IP67, 4000K, 5m roll, 140 LED/m, incl. clips
Article is located in the inlet, please contact the internal sales team
Article number
116289
| Article number | 116289 |
|---|---|
| Product description | LED NeonPRO940 Custom flex stripe B13H13, 24V DC, 12W, IP67, 4000K, 5m roll, 140 LED/m, incl. clips |
| GTIN - EAN | 9009377156649 |
| Features |      |
| Special features | Separation point: 50mm with 7 SMD each | Pitch (light point center-center): 7,14mm | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | without adhesive tape! | silicone encapsulation | Special feature: 30cm 2-pole sheathed cable one-sided, white, connection at the front, open stranded wire | Note: end caps flush in width and height, vertically bendable (bending radius min. 60mm) | Accessories included: mounting bracket |
| Nominal voltage | 24 V DC |
| Rated power | 12 W/m |
| Active power | 12 W/m |
| Luminous flux in lumen | 735 lm/m |
| RGB light source | No |
| Color temperature | 4000K |
| CRI Ra | 90 |
| Beam angle | 120° |
| Dimmable | Yes |
| Pitch SMD (mm) | 7.14 |
| Max. length per feed (m) | 5.00 |
| Required cooling mass | 0 |
| Tape type | ohne Klebeband |
| Protection class | IP67 |
| Outdoor | Y |
| Permissible ambient temp. | -20°C - 40°C |
| Housing material | Silicone |
| Width in mm | 13,0 |
| Length in mm | 5000,0 |
| Height in mm | 13,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
