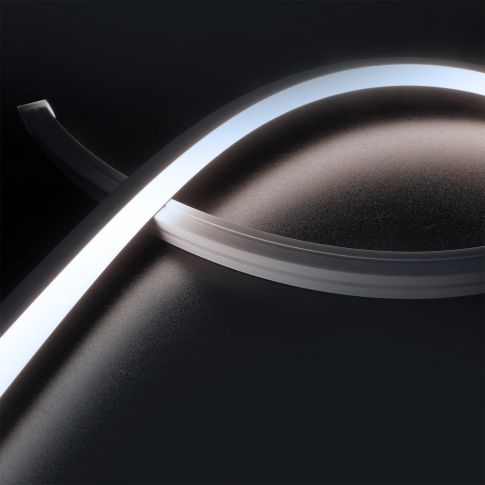

LED NeonPRO950 Custom flex stripe B13H13, 24V DC, 12W, IP67, 5000K, 5m roll, 140 LED/m, incl. clips
Article is located in the inlet, please contact the internal sales team
Article number
116186
| Article number | 116186 |
|---|---|
| Product description | LED NeonPRO950 Custom flex stripe B13H13, 24V DC, 12W, IP67, 5000K, 5m roll, 140 LED/m, incl. clips |
| GTIN - EAN | 9009377155765 |
| Features |         |
| Special features | Separation point: 50mm with 7 SMD each | Pitch (light point center-center): 7,14mm | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | without adhesive tape! | silicone encapsulation | Special feature: 30cm 2-pole sheathed cable one-sided, white, connection at the front, open stranded wire | Note: end caps flush in width and height, vertically bendable (bending radius min. 60mm) | Flame retardant and flame resistant (IEC 60695-11-5), IK08 (IEC 62262), salt spray resistant (IEC 60068-2-11:2021), UV resistant (ASTM G154-2016) |
| Nominal voltage | 24 V DC |
| Rated power | 12 W/m |
| Active power | 12 W/m |
| Efficiency in lm/W | 61 |
| Luminous flux in lumen | 735 lm/m |
| RGB light source | No |
| Color temperature | 5000K |
| Permissible ambient temp. | -20°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 90 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP67 |
| Housing material | Silicone |
| Potting material | Silikon |
| LED chips per metre | 140.000000 |
| LED per roll | 700,00 |
| Properties of connection cable | Mantelleitung 300mm einseitig, weiß, Anschluß stirnseitig, offene Litze, (2-polig) |
| Enclosed accessories | 3 Montagebügel / m |
| Separation point (mm) | 50.00 mm |
| LED per disconnection point | 7.000000 |
| Pitch SMD (mm) | 7.14 |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | ohne Klebeband |
| Weight in gramm | 1450 |
| Width in mm | 13,0 |
| Length in mm | 5000,0 |
| Height in mm | 13,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 13.00 mm |
