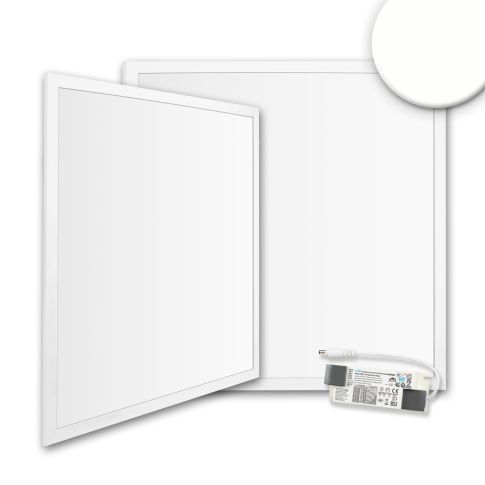

LED Panel Backlight Line 625, UGR<19 8H/8H, CRI 90, 36W, 4000K, PowerSwitch 21-40W
In stock
Article number
116953
| Article number | 116953 |
|---|---|
| Product description | LED Panel Backlight Line 625, UGR<19 8H/8H, CRI 90, 36W, 4000K, PowerSwitch 21-40W |
| GTIN - EAN | 9009377169717 |
| Features |           |
| Special features | Through-wiring possible via double plug-in clamp |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| Permissible ambient temp. | -20°C - 40°C |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 36 W |
| Active power | 36 W |
| Luminous flux in lumen | 3800 lm |
| Efficiency in lm/W | 105 |
| Color temperature | 4000K |
| CRI Ra | 90 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | No |
| Protection class | IP42 |
| Housing material | Aluminum |
| Housing color | white |
| Weight in gramm | 1920 |
| Length in mm | 620,0 |
| Width in mm | 620,0 |
| Height in mm | 30,0 |
| ext. Transformer length | 141.00 |
| ext. Transformer width | 50.00 |
| ext. Transformer height | 30.00 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 620.00 mm |
FastCalc Lichtberechnung nur in der Desktop Version verfügbar.
Alternative article
