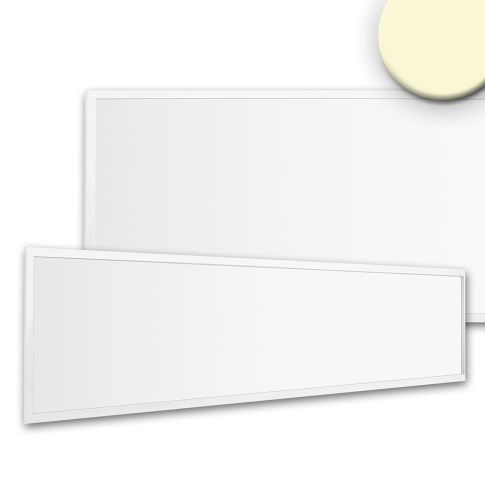

LED Panel Business Line 1200 UGR<19 2H/2H, 36W, frame white RAL 9016, warm white, dimmable
Article is located in the inlet, please contact the internal sales team
Article number
113269
| Article number | 113269 |
|---|---|
| Product description | LED Panel Business Line 1200 UGR<19 2H/2H, 36W, frame white RAL 9016, warm white, dimmable |
| GTIN - EAN | 9009377051289 |
| Features |              |
| Special features | Rough diffuse light emission surface, through-wiring possible via double plug-in clamp |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| Permissible ambient temp. | -20°C - 40°C |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 36 W |
| Active power | 37,5 W |
| Luminous flux in lumen | 4550 lm |
| Efficiency in lm/W | 121 |
| Color temperature | 3000K |
| CRI Ra | 80 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Dimming Specifications | Dimming range: 20-100% of the light output with TRIAC dimmer | Recommendation: use trailing edge dimmer | Flicker rate depends on the dimmer used and the type of dimming | Flickerfree in undimmed state |
| Protection class | IP42 |
| Housing material | Aluminum |
| Housing color | white |
| Weight in gramm | 2904 |
| Length in mm | 1195,0 |
| Width in mm | 295,0 |
| Height in mm | 10,0 |
| ext. Transformer length | 166.00 |
| ext. Transformer width | 52.00 |
| ext. Transformer height | 26.00 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | Y |
| Width in mm | 295.00 mm |
