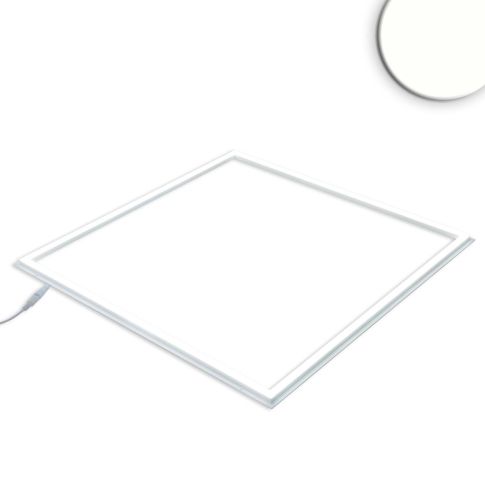

LED Panel Frame 600, 40W, neutral white, dimmable
In stock
Article number
115181
| Article number | 115181 |
|---|---|
| Product description | LED Panel Frame 600, 40W, neutral white, dimmable |
| GTIN - EAN | 9009377097225 |
| Features |         |
| Special features | Smooth diffuse light emission surface, through-wiring possible via double plug-in clamp |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| Permissible ambient temp. | -20°C - 40°C |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 40 W |
| Active power | 38 W |
| Luminous flux in lumen | 3600 lm |
| Efficiency in lm/W | 94 |
| Color temperature | 4000K |
| CRI Ra | 83 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Protection class | IP42 |
| Housing material | Aluminum |
| Housing color | white |
| Weight in gramm | 572 |
| Length in mm | 591,0 |
| Width in mm | 591,0 |
| Height in mm | 11,0 |
| ext. Transformer length | 166.00 |
| ext. Transformer width | 52.00 |
| ext. Transformer height | 26.00 |
| Lifetime L70|B10 | 54000 |
| Useful life L70|B50 | 81000 |
| Useful life L80|B50 in hours | 71000 |
| Guarantee in years | 3 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 591.00 mm |
