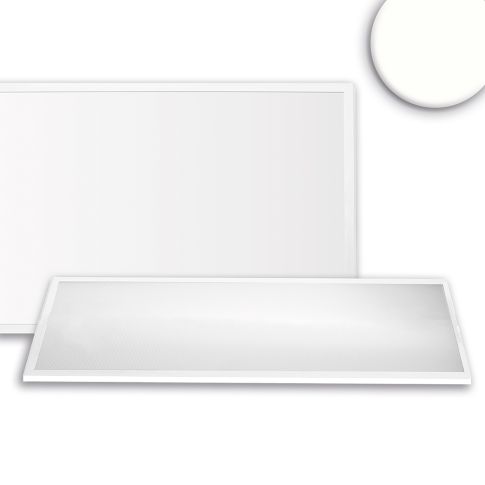

LED Panel Professional Line 308x1550mm, UGR<19 4H/8H, 36W, RAL 9016, neutral white
In stock
Article number
116035
| Article number | 116035 |
|---|---|
| Product description | LED Panel Professional Line 308x1550mm, UGR<19 4H/8H, 36W, RAL 9016, neutral white |
| GTIN - EAN | 9009377154096 |
| Features |            |
| Special features | Prismatic light diffusing cover, through-wiring possible via double plug-in clamp |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| Permissible ambient temp. | -20°C - 40°C |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 36 W |
| Active power | 37,5 W |
| Luminous flux in lumen | 4550 lm |
| Efficiency in lm/W | 121 |
| Color temperature | 4000K |
| CRI Ra | 84 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | No |
| Protection class | IP42 |
| Housing material | Aluminum |
| Housing color | white |
| Weight in gramm | 4050 |
| Length in mm | 1550,0 |
| Width in mm | 308,0 |
| Height in mm | 10,0 |
| ext. Transformer length | 119.00 |
| ext. Transformer width | 42.00 |
| ext. Transformer height | 28.00 |
| Lifetime L70|B10 | 50000 |
| Useful life L70|B50 | 75000 |
| Useful life L80|B50 in hours | 66000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | Y |
| Width in mm | 308.00 mm |
