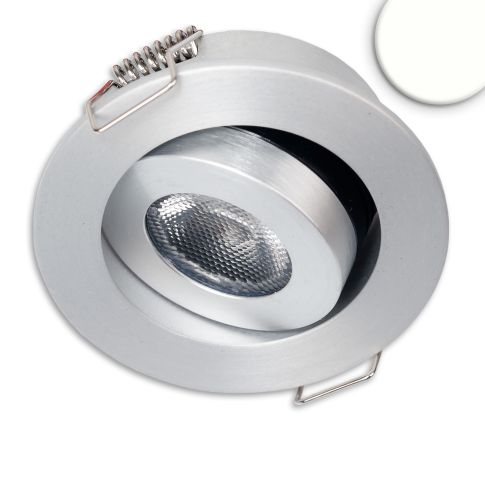

LED recessed luminaire MiniAMP alu brushed, 3W, 24V DC, neutral white, dimmable
In stock
Article number
114474
| Article number | 114474 |
|---|---|
| Product description | LED recessed luminaire MiniAMP alu brushed, 3W, 24V DC, neutral white, dimmable |
| GTIN - EAN | 9009377079832 |
| Features |        |
| Special features | Wire cross-section 0,5mm² |
| Properties of connection cable | 100 cm mit MiniAMP Stecker (2-polig, 0,5 mm²) |
| Nominal voltage | 24 V DC |
| Rated power | 3,6 W |
| Permissible ambient temp. | -10°C - 35°C |
| min. ambient temperature in °C | -10 |
| max. ambient temperature in °C | 35 |
| Active power | 3 W |
| Luminous flux in lumen | 260 lm |
| Efficiency in lm/W | 86 |
| Color temperature | 4000K |
| CRI Ra | 91 |
| Beam angle | 50° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | PWM |
| Dimming Specifications | Continuously dimmable via PWM (pulse width modulation) |
| Protection class | IP40 |
| Outdoor area | No |
| Housing material | Aluminum |
| Housing color | silver/gray |
| Weight in gramm | 48 |
| Height in mm | 22,0 |
| Diameter in mm | 52.00 mm |
| Hole cut-out | 44 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 21 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 20000 |
| Useful life L70|B50 | 30000 |
| Useful life L80|B50 in hours | 26000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
