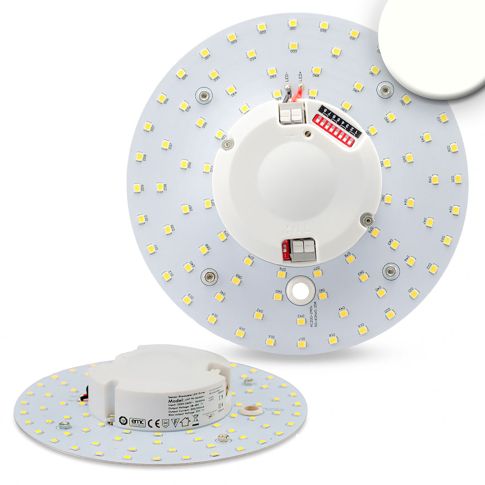

LED retrofit circuit board 160mm, 14W, neutral white, with holding magnet and HF-motion sensor
In stock
Article number
112436
| Article number | 112436 |
|---|---|
| Product description | LED retrofit circuit board 160mm, 14W, neutral white, with holding magnet and HF-motion sensor |
| GTIN - EAN | 9009377032363 |
| Features |       |
| Special features | LED board with 4 magnetic holders, board thickness 3mm, suitable for wall and ceiling luminaires with metal or sheet metal mounting plate, incl. pre-mounted transformer 330mA, 27-42V with radar sensor - sensitivity/time/delay adjustable via dip switch. |
| Dimmable | No |
| Luminous flux in lumen | 1800 lm |
| Efficiency in lm/W | 129 |
| Rated power | 14 W |
| Beam angle | 120° |
| Beam angle type | fixed |
| Active power | 13,9 W |
| Nominal voltage | 220 - 240 V AC |
| Color temperature | 4200K |
| max. ambient temperature in °C | 45 |
| Permissible ambient temp. | -20°C - 45°C |
| min. ambient temperature in °C | -20 |
| CRI Ra | 85 |
| Protection class | IP20 |
| Housing color | white |
| Housing material | Aluminum |
| Weight in gramm | 164 |
| Height in mm | 35,0 |
| Diameter in mm | 160.00 mm |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
