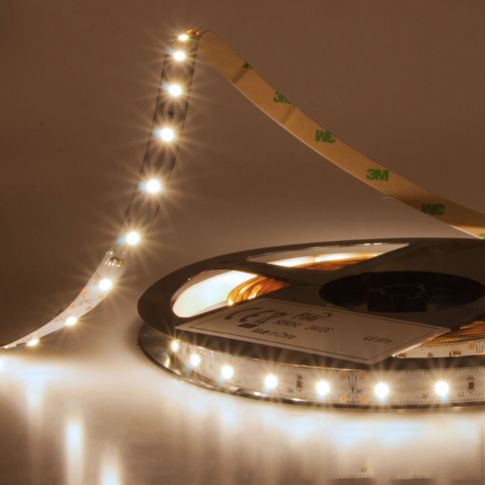

LED SIL830 flex stripe, 12V DC, 4,8W, IP20, 3000K, 5m roll, 60 LED/m
Article is located in the inlet, please contact the internal sales team
Article number
112244
| Article number | 112244 |
|---|---|
| Product description | LED SIL830 flex stripe, 12V DC, 4,8W, IP20, 3000K, 5m roll, 60 LED/m |
| GTIN - EAN | 9009377026539 |
| Features |     |
| Special features | Separation point: 50mm with 3 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 5m | max. flex stripe length per feed: 7,5m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M VHB adhesive tape | Clean and degrease substrate before sticking! Do not peel off again! | Connectors of the group: C1-210 / C2-210 / K1-210 / K2-210 are suitable| SPECIAL FEATURE: Connecting cable on both sides |
| Nominal voltage | 12 V DC |
| Rated power | 4,8 W/m |
| Active power | 4,8 W/m |
| Luminous flux in lumen | 500 lm/m |
| RGB light source | No |
| Color temperature | 3000K |
| CRI Ra | 81 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming Specifications | dimmable by PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Pitch SMD (mm) | 16.67 |
| Max. length per feed (m) | 7.50 |
| Required cooling mass | 45 |
| Tape type | 3M VHB |
| Protection class | IP20 |
| permissible ambient temperature | 0°C - 40°C |
| Weight in gramm | 94 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 2 |
