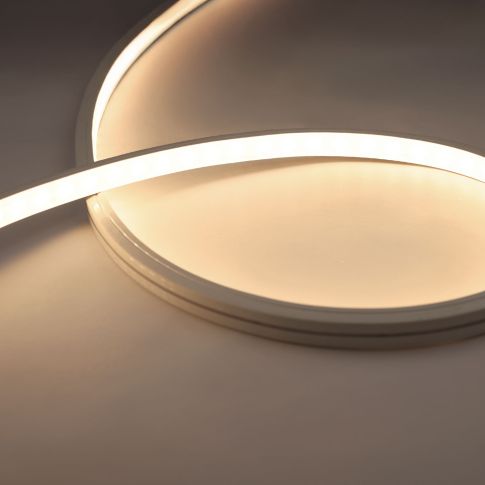

LED Wall washer flex stripe 20x55°, 4000K, 24V DC, 18W, IP54, CRI90, 3m roll, 70 LED/m
In stock
Article number
117179
| Article number | 117179 |
|---|---|
| Product description | LED Wall washer flex stripe 20x55°, 4000K, 24V DC, 18W, IP54, CRI90, 3m roll, 70 LED/m |
| GTIN - EAN | 9009377172892 |
| Features |        |
| Nominal voltage | 24 V DC |
| Rated power | 18 W/m |
| Active power | 18 W/m |
| Efficiency in lm/W | 83 |
| Luminous flux in lumen | 1500 lm/m |
| RGB light source | No |
| Color temperature | 4000K |
| Permissible ambient temp. | -20°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 90 |
| Beam angle | 20° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP54 |
| Housing material | Silicone |
| Properties of connection cable | Einzeladern 500mm beidseitig mit MiniAMP Stecker, (2-polig, 0,5 mm²) |
| Separation point (mm) | 100.00 mm |
| Pitch SMD (mm) | 14.00 |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 10.00 m |
| Tape type | ohne Klebeband |
| Weight in gramm | 380 |
| Width in mm | 12,0 |
| Length in mm | 3000,0 |
| Height in mm | 10,0 |
| Lifetime L70|B10 | 35000 |
| Useful life L70|B50 | 53000 |
| Useful life L80|B50 in hours | 46000 |
| Guarantee in years | 3 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 12.00 mm |
