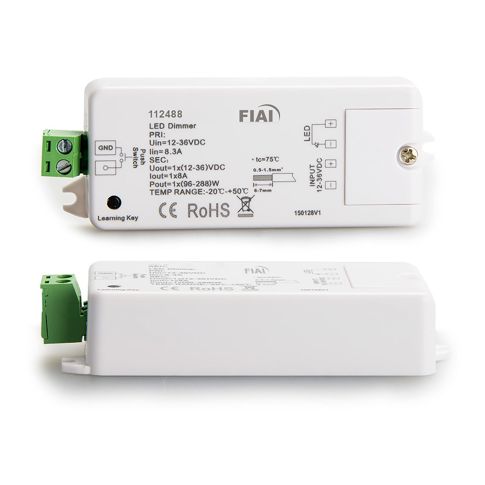

Sys-One Radio/Push PWM Controller, 1 Channel, 12-36V 8A, 48V 4A
In stock
Article number
112488
| Article number | 112488 |
|---|---|
| Product description | Sys-One Radio/Push PWM Controller, 1 Channel, 12-36V 8A, 48V 4A |
| GTIN - EAN | 9009377033902 |
| Features |     |
| Special features | Frequency 434MHz/868MHz, 1 zone single color, can be addressed by up to 5 different Sys-One controllers. Use a shielded twisted-pair control cable from the push-button to the push input to avoid self-induced push button pulses. Programming is retained even after the power supply is switched off. Only install and connect when voltage-free! |
| Dimming Specifications | Please use only a NON-dimmable transformer to ensure a constant DC voltage without PWM noise on the primary side. |
| Nominal voltage | 12 - 48 V DC |
| Rated power | 288 VA |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 70 |
| Length in mm | 102,0 |
| Width in mm | 37,0 |
| Height in mm | 20,0 |
| Guarantee in years | 2 |
| Net price | N |
| Bulky goods | N |
| Excess lengths | N |
| Width in mm | 37.00 mm |
