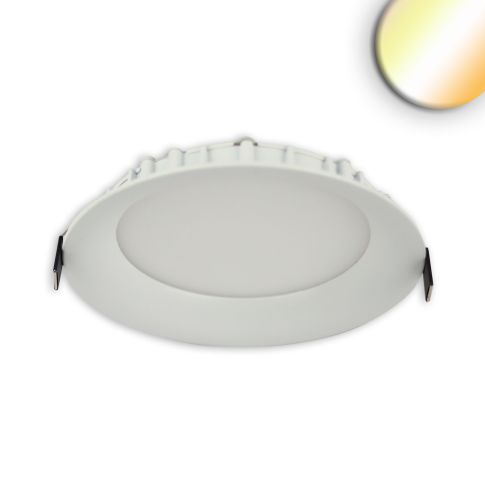

LED Downlight, 15W, ultraflat, ColorSwitch 2600|3100|4000K, dimmable
Article is located in the inlet, please contact the internal sales team
Article number
112942
| Article number | 112942 |
|---|---|
| Product description | LED Downlight, 15W, ultraflat, ColorSwitch 2600|3100|4000K, dimmable |
| GTIN - EAN | 9009377043468 |
| Features |          |
| Special features | 3 color temperature mixes 2.600K|3.100K|4.000K freely selectable via color switch module (located between transformer and downlight), external transformer (300mA, 27-42V DC, L=95 W=35 H=25mm) |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 15 W |
| Permissible ambient temp. | -20°C - 40°C |
| min. ambient temperature in °C | -20 |
| max. ambient temperature in °C | 40 |
| Active power | 12,5 W |
| Luminous flux in lumen | 1100 lm |
| Efficiency in lm/W | 88 |
| Color temperature | 2600 K 3100K 4000K |
| CRI Ra | 90 |
| Beam angle | 110° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Dimming Specifications | Dimming range: 20-100% of the light output with TRIAC dimmer | Recommendation: use trailing edge dimmer | Flicker rate depends on the dimmer used and the type of dimming | Flickerfree in undimmed state |
| Protection class | IP42 |
| Outdoor area | No |
| Housing material | Die-cast aluminum |
| Housing color | white |
| Weight in gramm | 336 |
| Height in mm | 27,0 |
| Diameter in mm | 157.00 mm |
| Hole cut-out | 140 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 25 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
