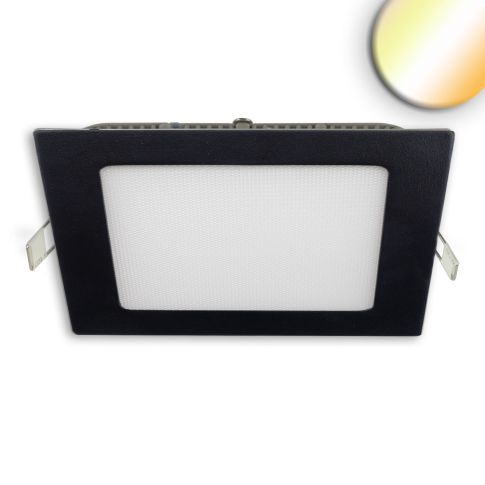

LED Downlight, 24W, angular ultraflat black, 300x300mm, ColorSwitch 3000|3500|4000K, dimmable
Article is located in the inlet, please contact the internal sales team
Article number
115602
| Article number | 115602 |
|---|---|
| Product description | LED Downlight, 24W, angular ultraflat black, 300x300mm, ColorSwitch 3000|3500|4000K, dimmable |
| GTIN - EAN | 9009377144813 |
| Features |        |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 24,8 W |
| Permissible ambient temp. | -20°C - 40°C |
| min. ambient temperature in °C | -20 |
| max. ambient temperature in °C | 40 |
| Active power | 24 W |
| Luminous flux in lumen | 2550 lm |
| Efficiency in lm/W | 106 |
| Color temperature | 3000 K 3500K 4000K |
| CRI Ra | 80 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Protection class | IP42 |
| Outdoor area | No |
| Housing material | Die-cast aluminum |
| Housing color | black |
| Weight in gramm | 940 |
| Length in mm | 300,0 |
| Width in mm | 300,0 |
| Height in mm | 23,0 |
| Hole cut-out | 285 mm x 285 mm |
| Hole cutout type | Rectangle |
| Installation depth in mm | 23 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
