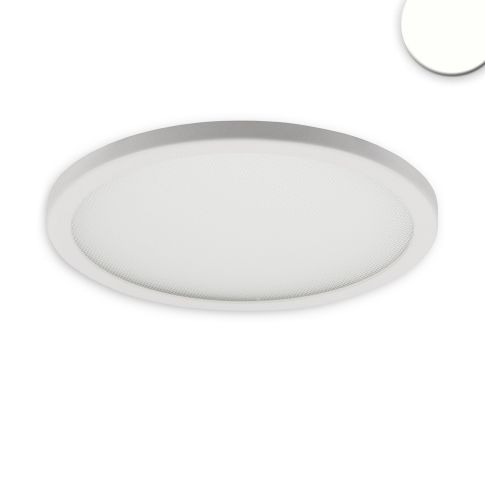

LED Downlight Flex 15W, prismatic, 120°, hole cutout 50-160mm, neutral white, dimmable
In stock
Article number
114115
| Article number | 114115 |
|---|---|
| Product description | LED Downlight Flex 15W, prismatic, 120°, hole cutout 50-160mm, neutral white, dimmable |
| GTIN - EAN | 9009377071713 |
| Features |        |
| Special features | ultraflat, incl. pluggable external 280mA transformer, holds by means of adjustable spring clips in a variable hole cutout from min. 50mm to max. 160mm |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 16 W |
| Permissible ambient temp. | -20°C - 40°C |
| min. ambient temperature in °C | -20 |
| max. ambient temperature in °C | 40 |
| Active power | 15 W |
| Luminous flux in lumen | 1400 lm |
| Efficiency in lm/W | 93 |
| Color temperature | 4000K |
| CRI Ra | 90 |
| Beam angle | 120° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Dimming Specifications | Dimming range: 20-100% of the light output with trailing edge dimmer | Flickerfree in undimmed state |
| Protection class | IP52 |
| Outdoor area | No |
| Housing material | Die-cast aluminum |
| Housing color | white |
| Weight in gramm | 354 |
| Height in mm | 10,0 |
| Diameter in mm | 175.00 mm |
| Hole cut-out | 50 mm - 160 mm |
| Hole cutout type | Min-Max |
| Installation depth in mm | 11 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
