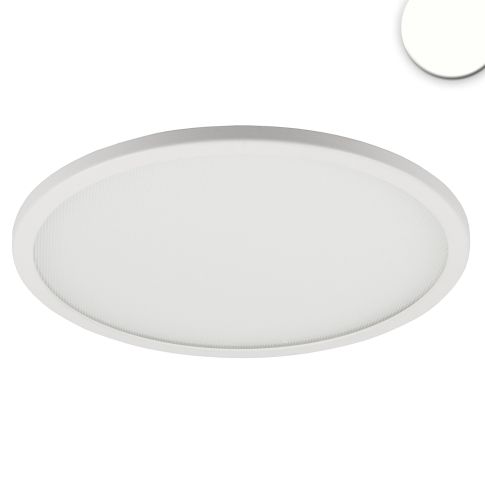

LED Downlight Flex 23W, prismatic, 120°, hole cutout 50-210mm, neutral white, dimmable

In stock
Article number
114117
LED Downlight Flex 23W, prismatic, 120°, hole cutout 50-210mm, neutral white, dimmable
114117
More Information
Article number 114117
Product description LED Downlight Flex 23W, prismatic, 120°, hole cutout 50-210mm, neutral white, dimmable
GTIN - EAN 9009377071751
Features  Energielabel EIcon GarantieIcon ProjektartikelIcon dimmbarIcon Geeignet zum Betrieb an NotstromIcon Inklusive externem austauschbaren TrafoPictogram Info
Special features ultraflat, incl. pluggable external 300mA transformer, holds by means of adjustable spring clips in a variable hole cutout from min. 50mm to max. 210mm
Nominal voltage 220 - 240 V AC
Rated power 24 W
Permissible ambient temp. -20°C - 40°C
min. ambient temperature in °C -20
max. ambient temperature in °C 40
Active power 23 W
Luminous flux in lumen 2200 lm
Efficiency in lm/W 95
Color temperature 4000K
CRI Ra 90
Beam angle 120°
Beam angle type fixed
Dimmable Yes
Dimming type Phasenan-/Abschnitt
Dimming Specifications Dimming range: 20-100% of the light output with trailing edge dimmer | Flickerfree in undimmed state
Protection class IP52
Outdoor area No
Housing material Die-cast aluminum
Housing color white
Weight in gramm 550
Height in mm 10,0
Diameter in mm 230.00 mm
Hole cut-out 50 mm - 210 mm
Hole cutout type Min-Max
Installation depth in mm 11
ext. Transformer length 0.00
ext. Transformer width 0.00
ext. Transformer height 0.00
Lifetime L70|B10 38000
Useful life L70|B50 57000
Useful life L80|B50 in hours 50000
Guarantee in years 5
Net price N
Excess lengths N
Bulky goods N

FastCalc Lichtberechnung nur in der Desktop Version verfügbar.
