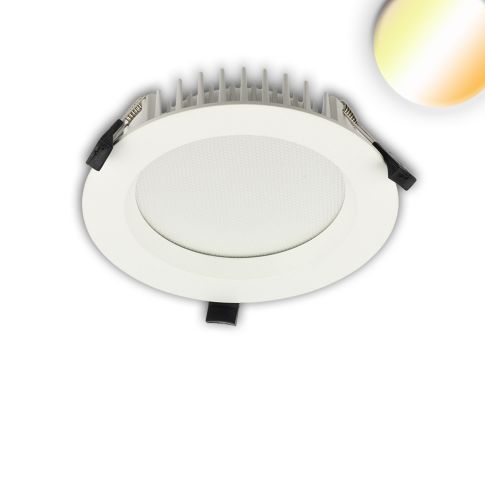

LED Downlight glare reduced, 25W, round, DN190, CRI90, Switch 3000|3500|4000K, dimmable
In stock
Article number
114193
| Article number | 114193 |
|---|---|
| Product description | LED Downlight glare reduced, 25W, round, DN190, CRI90, Switch 3000|3500|4000K, dimmable |
| GTIN - EAN | 9009377073731 |
| Features |        |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 25 W |
| Permissible ambient temp. | -20°C - 40°C |
| min. ambient temperature in °C | -20 |
| max. ambient temperature in °C | 40 |
| Active power | 24 W |
| Luminous flux in lumen | 2000 lm |
| Efficiency in lm/W | 83 |
| Color temperature | 3000 K 3500K 4000K |
| CRI Ra | 90 |
| Beam angle | 90° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Dimming Specifications | Dimming range: 20-100% of the light output with TRIAC dimmer | Recommendation: use trailing edge dimmer | Flicker rate depends on the dimmer used and the type of dimming | Flickerfree in undimmed state |
| Protection class | IP42 |
| Outdoor area | No |
| Housing material | Die-cast aluminum |
| Housing color | white |
| Weight in gramm | 850 |
| Height in mm | 45,0 |
| Diameter in mm | 190.00 mm |
| Hole cut-out | 160 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 49 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
