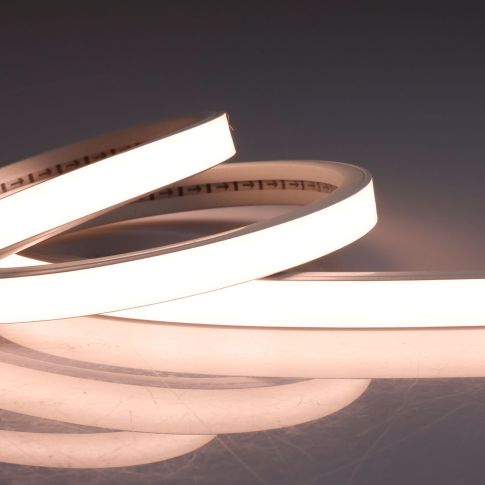

LED NEON940 flex stripe B13H08, 24 V DC, 12 W, IP54, 4000K, 5m roll, 240 LEDs/m, incl. install. clips
In stock
Article number
117718
| Article number | 117718 |
|---|---|
| Product description | LED NEON940 flex stripe B13H08, 24 V DC, 12 W, IP54, 4000K, 5m roll, 240 LEDs/m, incl. install. clips |
| GTIN - EAN | 9009377180095 |
| Features |        |
| Special features | Separation point: 4.17 mm with 1 SMD each | Pitch ( light point center-to-center): 4.17 mm | 1 unit (roll) = 5 m | max. flex stripe length per infeed: 5 m | Length tolerance + thermal expansion: 1% | No cooling profile required | No adhesive tape! | Silicone encapsulation | Special feature: 50 cm 2-pole sheathed cable on both sides, white, connection at the front, with MiniAMP | Note: End caps flush with the width and height, horizontally bendable (bending radius min. 60 mm) | Flame-retardant and flame-resistant (IEC 60695-11-5), IK08 (IEC 62262), salt spray resistant (IEC 60068-2-11:2021), UV resistant (ASTM G154-2016) |
| Nominal voltage | 24 V DC |
| Rated power | 12 W/m |
| Active power | 12 W/m |
| Efficiency in lm/W | 73 |
| Luminous flux in lumen | 880 lm/m |
| RGB light source | No |
| Color temperature | 4000K |
| Permissible ambient temp. | -20°C - 40°C |
| max. ambient temperature in °C | 40 |
| min. ambient temperature in °C | -20 |
| CRI Ra | 90 |
| Beam angle | 120° |
| Dimmable | Yes |
| Dimming type | PWM |
| Protection class | IP54 |
| Housing material | Silicone |
| Separation point (mm) | 4.00 mm |
| Pitch SMD (mm) | 4.00 |
| Cooling mass g/m | 0.00 g/m |
| Max. length per feed (m) | 5.00 m |
| Tape type | 3M VHB |
| Weight in gramm | 776 |
| Width in mm | 8,0 |
| Length in mm | 5000,0 |
| Height in mm | 13,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
| Width in mm | 8.00 mm |
