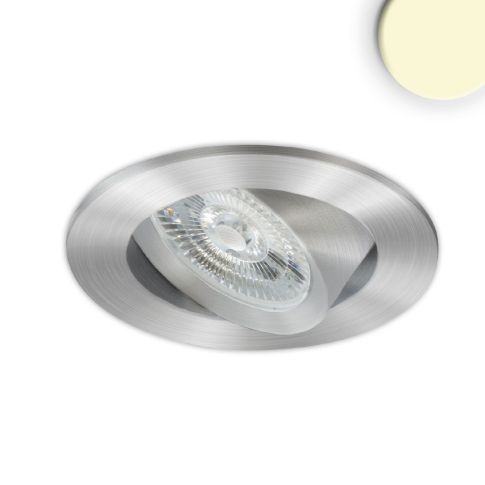

LED Recessed luminaire Slim68 aluminum brushed, round, 9W, warm white, dimmable
In stock
Article number
114924
| Article number | 114924 |
|---|---|
| Product description | LED Recessed luminaire Slim68 aluminum brushed, round, 9W, warm white, dimmable |
| GTIN - EAN | 9009377093463 |
| Features |         |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 9 W |
| Permissible ambient temp. | -20°C - 40°C |
| min. ambient temperature in °C | -20 |
| max. ambient temperature in °C | 40 |
| Active power | 8,6 W |
| Luminous flux in lumen | 850 lm |
| Efficiency in lm/W | 98 |
| Color temperature | 3000K |
| CRI Ra | 92 |
| Beam angle | 45° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Dimming Specifications | Dimmable via leading or trailing edge phase dimmer | Recommendation: use trailing edge dimmer! |
| Protection class | IP42 |
| Outdoor area | No |
| Housing material | Aluminum |
| Housing color | silver/gray |
| Weight in gramm | 246 |
| Height in mm | 30,0 |
| Diameter in mm | 86.00 mm |
| Hole cut-out | 68 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 27,1 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
