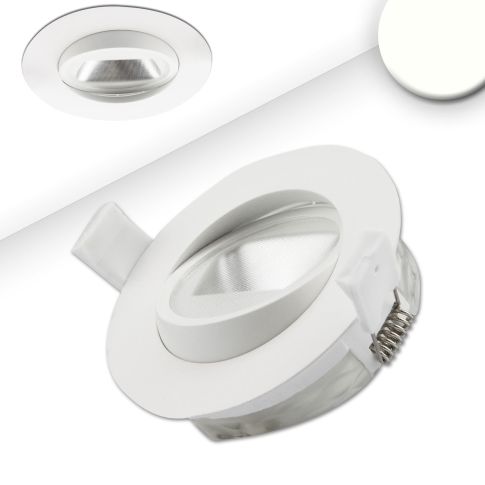

LED Recessed spotlight asymmetric COB, white, 8W, 50°, IP44, round, neutral white, dimmable
In stock
Article number
114148
| Article number | 114148 |
|---|---|
| Product description | LED Recessed spotlight asymmetric COB, white, 8W, 50°, IP44, round, neutral white, dimmable |
| GTIN - EAN | 9009377072949 |
| Features |        |
| Special features | external transformer (85x40x28mm) |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 9 W |
| Permissible ambient temp. | -20°C - 50°C |
| min. ambient temperature in °C | -20 |
| max. ambient temperature in °C | 50 |
| Active power | 8 W |
| Luminous flux in lumen | 550 lm |
| Efficiency in lm/W | 68 |
| Color temperature | 4000K |
| CRI Ra | 94 |
| Beam angle | 50° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Dimming Specifications | Dimmable with trailing edge phase in the range of 30-100% of the light output |
| Protection class | IP44 |
| Outdoor area | No |
| Housing material | Aluminum |
| Housing color | white |
| Weight in gramm | 357 |
| Height in mm | 40,0 |
| Diameter in mm | 95.00 mm |
| Hole cut-out | 83 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 46 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
